Kubernetes 클러스터 환경을 kubeadm, kubespray , 와 같은 도구를 이용하지 않고 3개의 VM에 아래와 같은 클러스터를 직접 구성하는것이 목적입니다.
kubeadm 도구는 이 블로그에서 하는 작업을 자동화해주는 역할을 합니다. 그리고 kubespray는 kubeadm을 또 한번 자동화해주는 도구일뿐입니다.
그래서 이블로그를 통해서 K8S 클러스터를 구성하는 세부적인 내용을 이해하고 향후 운영환경에서 발생하는 여러가지 문제에 대한 트러블슈팅 능력함양에 있습니다.

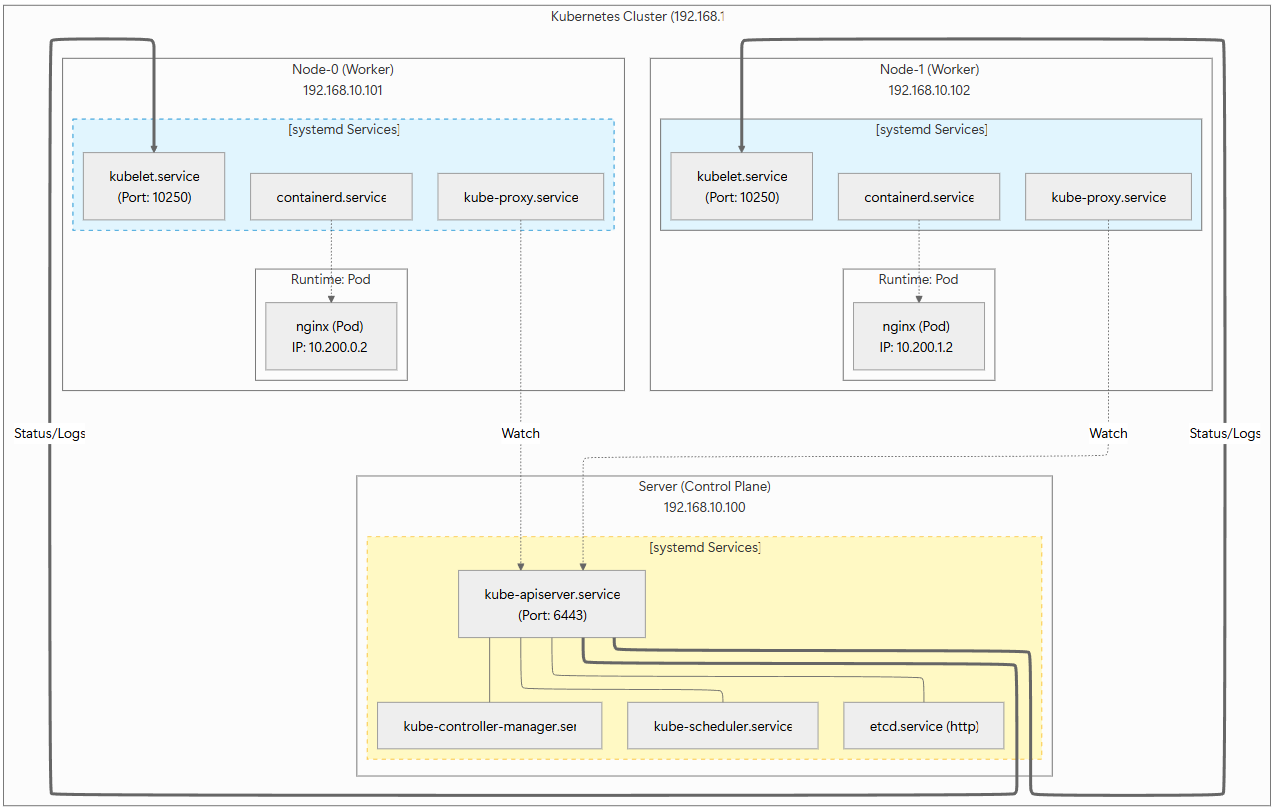

여기서 실제 클러스터 환경과의 차이점은 K8S 시스템 POD들이 손설치에서는 리눅스 service 로 실행된다는 점입니다.
- kube-apiserver.service
- kube-controller-manager.service
- kube-scheduler.service
- etcd.service (http)
- kube-proxy.service
1. 실습환경 구성
실습환경은 Windows 11 OS 에서 Vagrant 로 VirtualBox VM 4대로 진행합니다.
| NAME | Description | CPU | RAM | NIC1 | NIC2 | HOSTNAME |
| jumpbox | Administration host | 2 | 1536 MB | 10.0.2.15 | 192.168.10.10 | jumpbox |
| server | Kubernetes server | 2 | 2GB | 10.0.2.15 | 192.168.10.100 | server.kubernetes.local server |
| node-0 | Kubernetes worker | 2 | 2GB | 10.0.2.15 | 192.168.10.101 | node-0.kubernetes.local node-0 |
| node-1 | Kubernetes worker | 2 | 2GB | 10.0.2.15 | 192.168.10.102 | node-1.kubernetes.local node-1 |
쿠버네티스 POD / Service 리소스의 네트워크 CIDR 정보는 아래와 같이 구성할 예정입니다.
| 항목 | 네트워크 대역 or IP |
| clusterCIDR | 10.200.0.0/16 |
| → node-0 PodCIDR | 10.200.0.0/24 |
| → node-1 PodCIDR | 10.200.1.0/24 |
| ServiceCIDR | 10.32.0.0/24 |
| → api clusterIP | 10.32.0.1 |
- 실습용 가상머신 배포
# 작업용 디렉터리 생성
mkdir C:\k8s-hardway
cd C:\k8s-hardway
# Vagrantfile , init_cfg.sh 파일 다운로드
curl -O https://raw.githubusercontent.com/gasida/vagrant-lab/refs/heads/main/k8s-hardway/Vagrantfile
curl -O https://raw.githubusercontent.com/gasida/vagrant-lab/refs/heads/main/k8s-hardway/init_cfg.sh
# 실습용 가상 머신 배포
vagrant up
# 실습용 OS 이미지 자동 다운로드 확인
vagrant box list
bento/debian-12 (virtualbox, 202510.26.0, (arm64))
# 배포된 가상머신 확인
vagrant status
Current machine states:
jumpbox running (virtualbox)
server running (virtualbox)
node-0 running (virtualbox)
node-1 running (virtualbox)
더보기
(참고) Vagrant 설정 파일
- Vagrantfile
# Base Image : https://portal.cloud.hashicorp.com/vagrant/discover/bento/debian-12
BOX_IMAGE = "bento/debian-12"
BOX_VERSION = "202510.26.0"
Vagrant.configure("2") do |config|
# jumpbox
config.vm.define "jumpbox" do |subconfig|
subconfig.vm.box = BOX_IMAGE
subconfig.vm.box_version = BOX_VERSION
subconfig.vm.provider "virtualbox" do |vb|
vb.customize ["modifyvm", :id, "--groups", "/Hardway-Lab"]
vb.customize ["modifyvm", :id, "--nicpromisc2", "allow-all"]
vb.name = "jumpbox"
vb.cpus = 2
vb.memory = 1536 # 2048 2560 3072 4096
vb.linked_clone = true
end
subconfig.vm.host_name = "jumpbox"
subconfig.vm.network "private_network", ip: "192.168.10.10"
subconfig.vm.network "forwarded_port", guest: 22, host: 60010, auto_correct: true, id: "ssh"
subconfig.vm.synced_folder "./", "/vagrant", disabled: true
subconfig.vm.provision "shell", path: "init_cfg.sh"
end
# server
config.vm.define "server" do |subconfig|
subconfig.vm.box = BOX_IMAGE
subconfig.vm.box_version = BOX_VERSION
subconfig.vm.provider "virtualbox" do |vb|
vb.customize ["modifyvm", :id, "--groups", "/Hardway-Lab"]
vb.customize ["modifyvm", :id, "--nicpromisc2", "allow-all"]
vb.name = "server"
vb.cpus = 2
vb.memory = 2048
vb.linked_clone = true
end
subconfig.vm.host_name = "server"
subconfig.vm.network "private_network", ip: "192.168.10.100"
subconfig.vm.network "forwarded_port", guest: 22, host: 60100, auto_correct: true, id: "ssh"
subconfig.vm.synced_folder "./", "/vagrant", disabled: true
subconfig.vm.provision "shell", path: "init_cfg.sh"
end
# node-0
config.vm.define "node-0" do |subconfig|
subconfig.vm.box = BOX_IMAGE
subconfig.vm.box_version = BOX_VERSION
subconfig.vm.provider "virtualbox" do |vb|
vb.customize ["modifyvm", :id, "--groups", "/Hardway-Lab"]
vb.customize ["modifyvm", :id, "--nicpromisc2", "allow-all"]
vb.name = "node-0"
vb.cpus = 2
vb.memory = 2048
vb.linked_clone = true
end
subconfig.vm.host_name = "node-0"
subconfig.vm.network "private_network", ip: "192.168.10.101"
subconfig.vm.network "forwarded_port", guest: 22, host: 60101, auto_correct: true, id: "ssh"
subconfig.vm.synced_folder "./", "/vagrant", disabled: true
subconfig.vm.provision "shell", path: "init_cfg.sh"
end
# node-1
config.vm.define "node-1" do |subconfig|
subconfig.vm.box = BOX_IMAGE
subconfig.vm.box_version = BOX_VERSION
subconfig.vm.provider "virtualbox" do |vb|
vb.customize ["modifyvm", :id, "--groups", "/Hardway-Lab"]
vb.customize ["modifyvm", :id, "--nicpromisc2", "allow-all"]
vb.name = "node-1"
vb.cpus = 2
vb.memory = 2048
vb.linked_clone = true
end
subconfig.vm.host_name = "node-1"
subconfig.vm.network "private_network", ip: "192.168.10.102"
subconfig.vm.network "forwarded_port", guest: 22, host: 60102, auto_correct: true, id: "ssh"
subconfig.vm.synced_folder "./", "/vagrant", disabled: true
subconfig.vm.provision "shell", path: "init_cfg.sh"
end
end
- 초기 설정 init_cfg.sh
#!/usr/bin/env bash
echo ">>>> Initial Config Start <<<<"
echo "[TASK 1] Setting Profile & Bashrc"
echo "sudo su -" >> /home/vagrant/.bashrc
echo 'alias vi=vim' >> /etc/profile
ln -sf /usr/share/zoneinfo/Asia/Seoul /etc/localtime # Change Timezone
echo "[TASK 2] Disable AppArmor"
systemctl stop apparmor && systemctl disable apparmor >/dev/null 2>&1
echo "[TASK 3] Disable and turn off SWAP"
swapoff -a && sed -i '/swap/s/^/#/' /etc/fstab
echo "[TASK 4] Install Packages"
apt update -qq >/dev/null 2>&1
apt install tree git jq yq unzip vim sshpass -y -qq >/dev/null 2>&1
echo "[TASK 5] Setting Root Password"
echo "root:qwe123" | chpasswd
echo "[TASK 6] Setting Sshd Config"
cat << EOF >> /etc/ssh/sshd_config
PasswordAuthentication yes
PermitRootLogin yes
EOF
systemctl restart sshd >/dev/null 2>&1
echo "[TASK 7] Setting Local DNS Using Hosts file"
sed -i '/^127\.0\.\(1\|2\)\.1/d' /etc/hosts
cat << EOF >> /etc/hosts
192.168.10.10 jumpbox
192.168.10.100 server.kubernetes.local server
192.168.10.101 node-0.kubernetes.local node-0
192.168.10.102 node-1.kubernetes.local node-1
EOF
echo ">>>> Initial Config End <<<<"
위 과정이 완료되면 4개의 가상머신이 실행중이게 됩니다.
jumpbox 가상머신에 접속하여 기본 설정을 확인합니다.
vagrant ssh jumpbox
# 사용자 확인
whoami
root
pwd
/root
# OS version 확인
cat /etc/os-release
PRETTY_NAME="Debian GNU/Linux 12 (bookworm)"
NAME="Debian GNU/Linux"
VERSION_ID="12"
VERSION="12 (bookworm)"
VERSION_CODENAME=bookworm
ID=debian
# AppArmor 상태 확인
aa-status
systemctl is-active apparmor
inactive
# /etc/hosts 파일 내용 확인
# https://www.debian.org/doc/manuals/debian-reference/ch05.en.html#_the_hostname_resolution
cat /etc/hosts
127.0.0.1 localhost
# The following lines are desirable for IPv6 capable hosts
::1 localhost ip6-localhost ip6-loopback
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
192.168.10.10 jumpbox
192.168.10.100 server.kubernetes.local server
192.168.10.101 node-0.kubernetes.local node-0
192.168.10.102 node-1.kubernetes.local node-1
2. Set Up The Jumpbox
jumpbox 에 설치에 필요한 파일들을 미리 다운로드하고, 클러스터 각 노드에 scp 로 복사하는 역할을 합니다.
| 설치 항목 | 버전 |
| k8s 관련 (kube-apiserver, kubelet 등) | 1.32.2 |
| etcd | 3.6.0 |
| containerd | 2.1.0 |
| runc | 1.3.0 |
| # root 계정 확인 whoami root ## vagrant 계정 로그인 시 'sudo su -' 실행으로 root 계정 전환됨 cat /home/vagrant/.bashrc | tail -n 1 sudo su - # 툴 설치 : 이미 적용되어 있음 apt-get update && apt install tree git jq yq unzip vim sshpass -y # Sync GitHub Repository ## --depth 1 : 최신 커밋만 가져오는 shallow clone을 의미한다. 전체 git 히스토리가 필요 없으므로 이 옵션을 사용하면 다운로드 시간과 용량을 절약할 수 있다. ## 출처 멤버 작성 글 : https://sirzzang.github.io/kubernetes/Kubernetes-Cluster-The-Hard-Way-02/ git clone --depth 1 https://github.com/kelseyhightower/kubernetes-the-hard-way.git cd kubernetes-the-hard-way tree . ├── ca.conf ├── configs │ ├── 10-bridge.conf │ ├── 99-loopback.conf │ ├── containerd-config.toml │ ├── encryption-config.yaml │ ├── kube-apiserver-to-kubelet.yaml │ ├── kubelet-config.yaml │ ├── kube-proxy-config.yaml │ └── kube-scheduler.yaml ├── CONTRIBUTING.md ├── COPYRIGHT.md ├── docs │ ├── 01-prerequisites.md │ ├── 02-jumpbox.md │ ├── 03-compute-resources.md │ ├── 04-certificate-authority.md │ ├── 05-kubernetes-configuration-files.md │ ├── 06-data-encryption-keys.md │ ├── 07-bootstrapping-etcd.md │ ├── 08-bootstrapping-kubernetes-controllers.md │ ├── 09-bootstrapping-kubernetes-workers.md │ ├── 10-configuring-kubectl.md │ ├── 11-pod-network-routes.md │ ├── 12-smoke-test.md │ └── 13-cleanup.md ├── downloads-amd64.txt ├── downloads-arm64.txt ├── LICENSE ├── README.md └── units ├── containerd.service ├── etcd.service ├── kube-apiserver.service ├── kube-controller-manager.service ├── kubelet.service ├── kube-proxy.service └── kube-scheduler.service # Download Binaries : k8s 구성을 위한 컴포넌트 다운로드 # CPU 아키텍처 확인 dpkg --print-architecture amd64 # Windows 사용자 # CPU 아키텍처 별 다운로드 목록 정보 다름 ls -l downloads-* -rw-r--r-- 1 root root 839 Jan 4 10:30 downloads-amd64.txt -rw-r--r-- 1 root root 839 Jan 4 10:30 downloads-arm64.txt # https://kubernetes.io/releases/download/ cat downloads-$(dpkg --print-architecture).txt https://dl.k8s.io/v1.32.3/bin/linux/amd64/kubectl https://dl.k8s.io/v1.32.3/bin/linux/amd64/kube-apiserver https://dl.k8s.io/v1.32.3/bin/linux/amd64/kube-controller-manager https://dl.k8s.io/v1.32.3/bin/linux/amd64/kube-scheduler https://dl.k8s.io/v1.32.3/bin/linux/amd64/kube-proxy https://dl.k8s.io/v1.32.3/bin/linux/amd64/kubelet https://github.com/kubernetes-sigs/cri-tools/releases/download/v1.32.0/crictl-v1.32.0-linux-amd64.tar.gz https://github.com/opencontainers/runc/releases/download/v1.3.0-rc.1/runc.amd64 https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz https://github.com/containerd/containerd/releases/download/v2.1.0-beta.0/containerd-2.1.0-beta.0-linux-amd64.tar.gz https://github.com/etcd-io/etcd/releases/download/v3.6.0-rc.3/etcd-v3.6.0-rc.3-linux-amd64.tar.gz # wget 으로 다운로드 실행 : 500MB Size 정도 wget -q --show-progress \ --https-only \ --timestamping \ -P downloads \ -i downloads-$(dpkg --print-architecture).txt # 확인 ls -oh downloads total 566M -rw-r--r-- 1 root 51M Jan 7 2025 cni-plugins-linux-amd64-v1.6.2.tgz -rw-r--r-- 1 root 38M Mar 18 2025 containerd-2.1.0-beta.0-linux-amd64.tar.gz -rw-r--r-- 1 root 19M Dec 9 2024 crictl-v1.32.0-linux-amd64.tar.gz -rw-r--r-- 1 root 23M Mar 28 2025 etcd-v3.6.0-rc.3-linux-amd64.tar.gz -rw-r--r-- 1 root 89M Mar 12 2025 kube-apiserver -rw-r--r-- 1 root 83M Mar 12 2025 kube-controller-manager -rw-r--r-- 1 root 55M Mar 12 2025 kubectl -rw-r--r-- 1 root 74M Mar 12 2025 kubelet -rw-r--r-- 1 root 64M Mar 12 2025 kube-proxy -rw-r--r-- 1 root 63M Mar 12 2025 kube-scheduler -rw-r--r-- 1 root 12M Mar 4 2025 runc.amd64 # Extract the component binaries from the release archives and organize them under the downloads directory. ARCH=$(dpkg --print-architecture) echo $ARCH amd64 mkdir -p downloads/{client,cni-plugins,controller,worker} tree -d downloads downloads ├── client ├── cni-plugins ├── controller └── worker # 압축 풀기 tar -xvf downloads/crictl-v1.32.0-linux-${ARCH}.tar.gz \ -C downloads/worker/ && tree -ug downloads tar -xvf downloads/containerd-2.1.0-beta.0-linux-${ARCH}.tar.gz \ --strip-components 1 \ -C downloads/worker/ && tree -ug downloads tar -xvf downloads/cni-plugins-linux-${ARCH}-v1.6.2.tgz \ -C downloads/cni-plugins/ && tree -ug downloads ## --strip-components 1 : etcd-v3.6.0-rc.3-linux-amd64/etcd 경로의 앞부분(디렉터리)을 제거 tar -xvf downloads/etcd-v3.6.0-rc.3-linux-${ARCH}.tar.gz \ -C downloads/ \ --strip-components 1 \ etcd-v3.6.0-rc.3-linux-${ARCH}/etcdctl \ etcd-v3.6.0-rc.3-linux-${ARCH}/etcd && tree -ug downloads # 확인 tree downloads/worker/ tree downloads/cni-plugins ls -l downloads/{etcd,etcdctl} # 파일 이동 mv downloads/{etcdctl,kubectl} downloads/client/ mv downloads/{etcd,kube-apiserver,kube-controller-manager,kube-scheduler} downloads/controller/ mv downloads/{kubelet,kube-proxy} downloads/worker/ mv downloads/runc.${ARCH} downloads/worker/runc # 확인 tree downloads/client/ tree downloads/controller/ tree downloads/worker/ # 불필요한 압축 파일 제거 ls -l downloads/*gz rm -rf downloads/*gz # Make the binaries executable. ls -l downloads/{client,cni-plugins,controller,worker}/* chmod +x downloads/{client,cni-plugins,controller,worker}/* ls -l downloads/{client,cni-plugins,controller,worker}/* # 일부 파일 소유자 변경 tree -ug downloads # cat /etc/passwd | grep vagrant && cat /etc/group | grep vagrant chown root:root downloads/client/etcdctl chown root:root downloads/controller/etcd chown root:root downloads/worker/crictl tree -ug downloads # kubernetes client 도구인 kubectl를 설치 ls -l downloads/client/kubectl cp downloads/client/kubectl /usr/local/bin/ # can be verified by running the kubectl command: kubectl version --client Client Version: v1.32.3 Kustomize Version: v5.5.0 |
3. Provisioning Compute Resources
https://github.com/kelseyhightower/kubernetes-the-hard-way/blob/master/docs/03-compute-resources.md
이 단계에서는 jumpbox 에서 3개의 노드에 SSH 접속하기 위한 환경설정을 진행합니다.
# Machine Database (서버 속성 저장 파일) : IPV4_ADDRESS FQDN HOSTNAME POD_SUBNET
## 참고) server(controlplane)는 kubelet 동작하지 않아서, 파드 네트워크 대역 설정 필요 없음
cat <<EOF > machines.txt
192.168.10.100 server.kubernetes.local server
192.168.10.101 node-0.kubernetes.local node-0 10.200.0.0/24
192.168.10.102 node-1.kubernetes.local node-1 10.200.1.0/24
EOF
cat machines.txt
while read IP FQDN HOST SUBNET; do
echo "${IP} ${FQDN} ${HOST} ${SUBNET}"
done < machines.txt
# Configuring SSH Access 설정
# sshd config 설정 파일 확인 : 이미 암호 기반 인증 접속 설정 되어 있음
grep "^[^#]" /etc/ssh/sshd_config
...
PasswordAuthentication yes
PermitRootLogin yes
# Generate a new SSH key
ssh-keygen -t rsa -N "" -f /root/.ssh/id_rsa
ls -l /root/.ssh
-rw------- 1 root root 2602 Jan 2 21:07 id_rsa
-rw-r--r-- 1 root root 566 Jan 2 21:07 id_rsa.pub
# Copy the SSH public key to each machine
while read IP FQDN HOST SUBNET; do
sshpass -p 'qwe123' ssh-copy-id -o StrictHostKeyChecking=no root@${IP}
done < machines.txt
while read IP FQDN HOST SUBNET; do
ssh -n root@${IP} cat /root/.ssh/authorized_keys
done < machines.txt
# Once each key is added, verify SSH public key access is working
# 아래는 IP 기반으로 접속 확인
while read IP FQDN HOST SUBNET; do
ssh -n root@${IP} hostname
done < machines.txt
# Hostnames 설정
# 확인 : init_cfg.sh 로 이미 설정되어 있음
while read IP FQDN HOST SUBNET; do
ssh -n root@${IP} cat /etc/hosts
done < machines.txt
while read IP FQDN HOST SUBNET; do
ssh -n root@${IP} hostname --fqdn
done < machines.txt
# 아래는 hostname 으로 ssh 접속 확인
cat /etc/hosts
while read IP FQDN HOST SUBNET; do
sshpass -p 'qwe123' ssh -n -o StrictHostKeyChecking=no root@${HOST} hostname
done < machines.txt
while read IP FQDN HOST SUBNET; do
sshpass -p 'qwe123' ssh -n root@${HOST} uname -o -m -n
done < machines.txt
4. Provisioning a CA and Generating TLS Certificates
이 실습에서는 openssl을 사용하여 인증 기관을 부트스트랩하고 kube-apiserver, kube-controller-manager, kube-scheduler, kubelet 및 kube-proxy 구성 요소에 대한 TLS 인증서를 생성하여 PKI 인프라를 프로비저닝합니다. 이 섹션의 명령은 점프박스에서 실행해야 합니다.
| 항목 | 개인키 | CSR | 인증서 | 참고 정보 | X509v3 Extended Key Usage |
| Root CA | ca.key | X | ca.crt | ||
| admin | admin.key | admin.csr | admin.crt | CN = admin, O = system:masters | TLS Web Client Authentication |
| node-0 | node-0.key | node-0.csr | node-0.crt | CN = system:node:node-0, O = system:nodes | TLS Web Server / Client Authentication |
| node-1 | node-1.key | node-1.csr | node-1.crt | CN = system:node:node-1, O = system:nodes | TLS Web Server / Client Authentication |
| kube-proxy | kube-proxy.key | kube-proxy.csr | kube-proxy.crt | CN = system:kube-proxy, O = system:node-proxier | TLS Web Server / Client Authentication |
| kube-scheduler | kube-scheduler.key | kube-scheduler | kube-scheduler.crt | CN = system:kube-scheduler, O = system:kube-scheduler | TLS Web Server / Client Authentication |
| kube-controller-manager | kube-controller-manager.key | kube-controller-manager.csr | kube-controller-manager.crt | CN = system:kube-controller-manager, O = system:kube-controller-manager | TLS Web Server / Client Authentication |
| kube-api-server | kube-api-server.key | kube-api-server.csr | kube-api-server.crt | CN = kubernetes, SAN: IP(127.0.0.1, 10.32.0.1), DNS(kubernetes,..) | TLS Web Server / Client Authentication |
| service-accounts | service-accounts.key | service-accounts.csr | service-accounts.crt | CN = service-accounts | TLS Web Client Authentication |

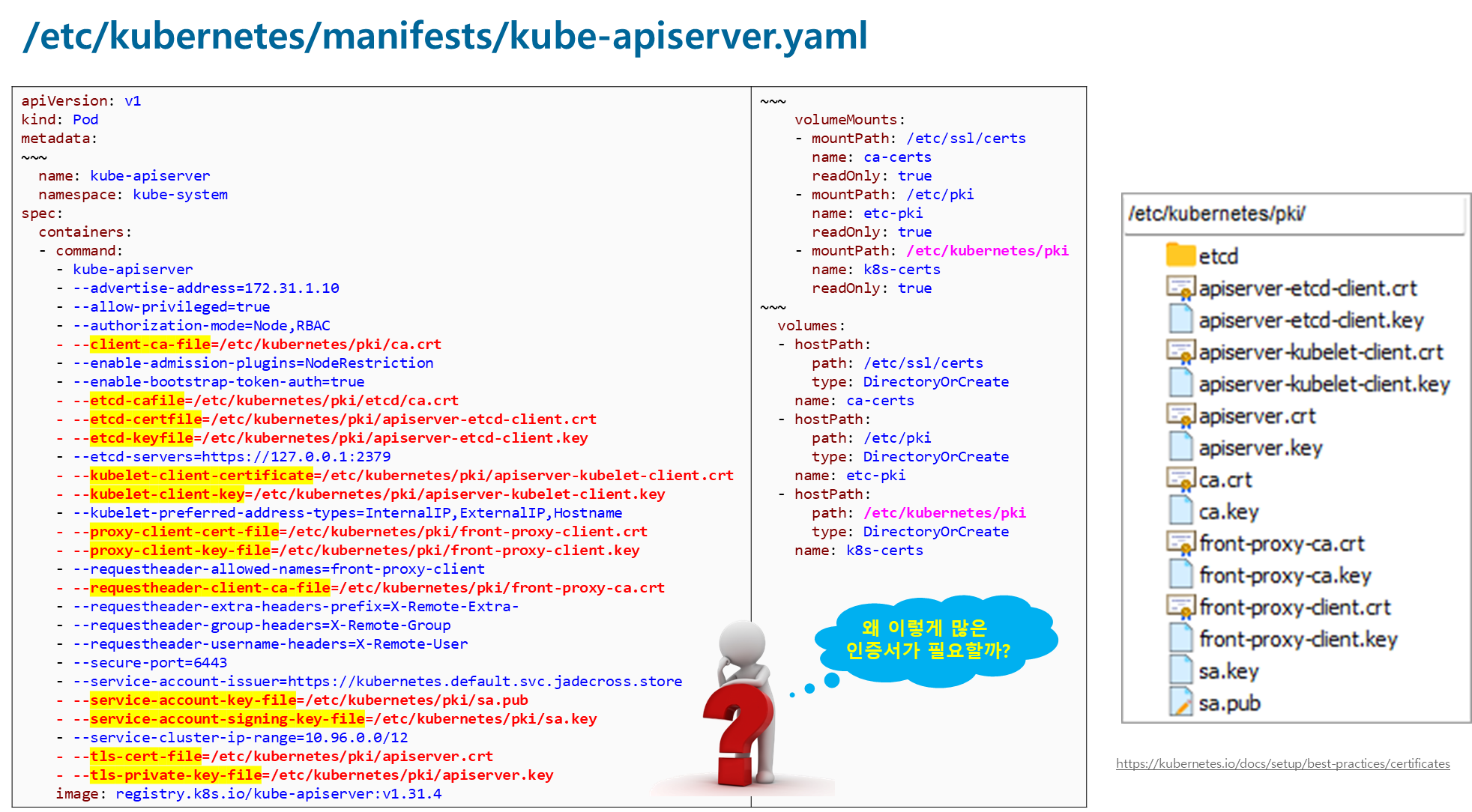

K8S 클러스터의 핵심 컴포넌트들은 서로 협력하기 위해 통신을 하는데 보안을 고려하여 mTLS 가 적용되어야 합니다. 이러한 암호화 통신을 하기 위해 CA 및 CA가 발행하는 각종 인증서를 만들고 배포하여야 합니다.
인증서 설정에 필요한 미리 설정된 ca.conf 파일이 제공되며, 이곳에서 각 구성요소별로 인증서 생성에 필요한 정보가 있습니다.
| 구분 | 역할 |
| [req] | OpenSSL 요청 기본 동작 |
| [ca_*] | CA 인증서 |
| [admin] | 관리자 (kubectl) |
| [service-accounts] | ServiceAccount 토큰 서명 |
| [node-*] | 워커 노드(kubelet) |
| [kube-proxy] | kube-proxy |
| [kube-controller-manager] | 컨트롤러 |
| [kube-scheduler] | 스케줄러 |
| [kube-api-server] | API Server |
| [default_req_extensions] | 공통 CSR 옵션 |
cat ca.conf
더보기
[req]
distinguished_name = req_distinguished_name
prompt = no # CSR 생성 시 대화형 입력 없음
x509_extensions = ca_x509_extensions # CA 인증서 생성 시 사용할 확장
[ca_x509_extensions] # CA 인증서 설정 (Root of Trust)
basicConstraints = CA:TRUE # CA 권한 인증서
keyUsage = cRLSign, keyCertSign # 다른 인증서를 서명 가능, Kubernetes 모든 인증의 신뢰 루트
[req_distinguished_name]
C = US
ST = Washington
L = Seattle
CN = CA # 클러스터 CA
[admin] # Admin 사용자 (kubectl)
distinguished_name = admin_distinguished_name
prompt = no
req_extensions = default_req_extensions
[admin_distinguished_name]
CN = admin # [K8S] CN → user
O = system:masters # [K8S] O → group , system:masters - Kubernetes 슈퍼유저 그룹, 모든 RBAC 인가 우회
# Service Accounts
#
# The Kubernetes Controller Manager leverages a key pair to generate
# and sign service account tokens as described in the
# [managing service accounts](https://kubernetes.io/docs/admin/service-accounts-admin/)
# documentation.
[service-accounts] # Service Account 서명자
distinguished_name = service-accounts_distinguished_name
prompt = no
req_extensions = default_req_extensions
[service-accounts_distinguished_name]
CN = service-accounts # controller-manager가 사용하는 ServiceAccount 토큰 서명용 인증서 , apiserver에서 --service-account-key-file 로 사용
# Worker Nodes
#
# Kubernetes uses a [special-purpose authorization mode](https://kubernetes.io/docs/admin/authorization/node/)
# called Node Authorizer, that specifically authorizes API requests made
# by [Kubelets](https://kubernetes.io/docs/concepts/overview/components/#kubelet).
# In order to be authorized by the Node Authorizer, Kubelets must use a credential
# that identifies them as being in the `system:nodes` group, with a username
# of `system:node:<nodeName>`.
[node-0] # Worker Node 인증서 (kubelet)
distinguished_name = node-0_distinguished_name
prompt = no
req_extensions = node-0_req_extensions
[node-0_req_extensions]
basicConstraints = CA:FALSE
extendedKeyUsage = clientAuth, serverAuth # clientAuth: apiserver → kubelet & serverAuth: kubelet HTTPS 서버(10250)
keyUsage = critical, digitalSignature, keyEncipherment
nsCertType = client
nsComment = "Node-0 Certificate"
subjectAltName = DNS:node-0, IP:127.0.0.1
subjectKeyIdentifier = hash
[node-0_distinguished_name]
CN = system:node:node-0 # kubelet 사용자 , CN = system:node:<nodeName>
O = system:nodes # Node Authorizer 그룹 ,O = system:nodes
C = US
ST = Washington
L = Seattle
[node-1]
distinguished_name = node-1_distinguished_name
prompt = no
req_extensions = node-1_req_extensions
[node-1_req_extensions]
basicConstraints = CA:FALSE
extendedKeyUsage = clientAuth, serverAuth
keyUsage = critical, digitalSignature, keyEncipherment
nsCertType = client
nsComment = "Node-1 Certificate"
subjectAltName = DNS:node-1, IP:127.0.0.1
subjectKeyIdentifier = hash
[node-1_distinguished_name]
CN = system:node:node-1
O = system:nodes
C = US
ST = Washington
L = Seattle
# Kube Proxy Section
[kube-proxy] # kube-proxy
distinguished_name = kube-proxy_distinguished_name
prompt = no
req_extensions = kube-proxy_req_extensions
[kube-proxy_req_extensions]
basicConstraints = CA:FALSE
extendedKeyUsage = clientAuth, serverAuth
keyUsage = critical, digitalSignature, keyEncipherment
nsCertType = client
nsComment = "Kube Proxy Certificate"
subjectAltName = DNS:kube-proxy, IP:127.0.0.1
subjectKeyIdentifier = hash
[kube-proxy_distinguished_name]
CN = system:kube-proxy
O = system:node-proxier # system:node-proxier ClusterRoleBinding 존재 , 서비스 네트워크 제어 가능
C = US
ST = Washington
L = Seattle
# Controller Manager
[kube-controller-manager]
distinguished_name = kube-controller-manager_distinguished_name
prompt = no
req_extensions = kube-controller-manager_req_extensions
[kube-controller-manager_req_extensions]
basicConstraints = CA:FALSE
extendedKeyUsage = clientAuth, serverAuth
keyUsage = critical, digitalSignature, keyEncipherment
nsCertType = client
nsComment = "Kube Controller Manager Certificate"
subjectAltName = DNS:kube-controller-manager, IP:127.0.0.1
subjectKeyIdentifier = hash
[kube-controller-manager_distinguished_name] # 클러스터 상태 관리, Node, ReplicaSet, SA 토큰 등 관리
CN = system:kube-controller-manager
O = system:kube-controller-manager
C = US
ST = Washington
L = Seattle
# Scheduler
[kube-scheduler]
distinguished_name = kube-scheduler_distinguished_name
prompt = no
req_extensions = kube-scheduler_req_extensions
[kube-scheduler_req_extensions]
basicConstraints = CA:FALSE
extendedKeyUsage = clientAuth, serverAuth
keyUsage = critical, digitalSignature, keyEncipherment
nsCertType = client
nsComment = "Kube Scheduler Certificate"
subjectAltName = DNS:kube-scheduler, IP:127.0.0.1
subjectKeyIdentifier = hash
[kube-scheduler_distinguished_name]
CN = system:kube-scheduler
O = system:kube-scheduler # Pod 스케줄링 전용 권한
C = US
ST = Washington
L = Seattle
# API Server
#
# The Kubernetes API server is automatically assigned the `kubernetes`
# internal dns name, which will be linked to the first IP address (`10.32.0.1`)
# from the address range (`10.32.0.0/24`) reserved for internal cluster
# services.
[kube-api-server] # API Server 인증서
distinguished_name = kube-api-server_distinguished_name
prompt = no
req_extensions = kube-api-server_req_extensions
[kube-api-server_req_extensions]
basicConstraints = CA:FALSE
extendedKeyUsage = clientAuth, serverAuth
keyUsage = critical, digitalSignature, keyEncipherment
nsCertType = client, server
nsComment = "Kube API Server Certificate"
subjectAltName = @kube-api-server_alt_names
subjectKeyIdentifier = hash
[kube-api-server_alt_names] # SAN (Subject Alternative Name) : 모든 내부/외부 접근 주소
IP.0 = 127.0.0.1
IP.1 = 10.32.0.1
DNS.0 = kubernetes
DNS.1 = kubernetes.default
DNS.2 = kubernetes.default.svc
DNS.3 = kubernetes.default.svc.cluster
DNS.4 = kubernetes.svc.cluster.local
DNS.5 = server.kubernetes.local
DNS.6 = api-server.kubernetes.local
[kube-api-server_distinguished_name]
CN = kubernetes
C = US
ST = Washington
L = Seattle
[default_req_extensions] # 공통 CSR 확장 : 대부분 클라이언트 인증서 -> kubelet / apiserver만 serverAuth 추가
basicConstraints = CA:FALSE
extendedKeyUsage = clientAuth
keyUsage = critical, digitalSignature, keyEncipherment
nsCertType = client
nsComment = "Admin Client Certificate"
subjectKeyIdentifier = hash
- Root CA 인증서 생성
# Generate the CA configuration file, certificate, and private key
# Root CA 개인키 생성 : ca.key
openssl genrsa -out ca.key 4096
ls -l ca.key
-rw------- 1 root root 3272 Jan 3 09:41 ca.key
cat ca.key
openssl rsa -in ca.key -text -noout # 개인키 구조 확인
# Root CA 인증서 생성 : ca.crt
## -x509 : CSR을 만들지 않고 바로 인증서(X.509) 생성, 즉, Self-Signed Certificate
## -noenc : 개인키를 암호화하지 않음, 즉, CA 키(ca.key)에 패스프레이즈 없음
## -config ca.conf : 인증서 세부 정보는 설정 파일에서 읽음 , [req] 섹션 사용됨 - DN 정보 → [req_distinguished_name] , CA 확장 → [ca_x509_extensions]
openssl req -x509 -new -sha512 -noenc \
-key ca.key -days 3653 \
-config ca.conf \
-out ca.crt
ls -l ca.crt
-rw-r--r-- 1 root root 1899 Jan 3 09:46 ca.crt
# ca.conf 관련 내용
cat ca.conf
-------------------------------------------
[req]
distinguished_name = req_distinguished_name
prompt = no
x509_extensions = ca_x509_extensions
[ca_x509_extensions]
basicConstraints = CA:TRUE # 이 인증서는 CA 역할 가능
keyUsage = cRLSign, keyCertSign # cRLSign: 인증서 폐기 목록(CRL) 서명 가능, keyCertSign: 다른 인증서를 서명할 수 있음
[req_distinguished_name]
C = US
ST = Washington
L = Seattle
CN = CA
-------------------------------------------
cat ca.crt
openssl x509 -in ca.crt -text -noout # 인증서 전체 내용 확인
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
56:fb:42:82:5e:2f:96:cf:f5:83:2e:78:46:98:6e:3f:08:ee:99:67
Signature Algorithm: sha512WithRSAEncryption
Issuer: C = US, ST = Washington, L = Seattle, CN = CA
Validity
Not Before: Jan 3 00:46:22 2026 GMT
Not After : Jan 4 00:46:22 2036 GMT
Subject: C = US, ST = Washington, L = Seattle, CN = CA
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
Public-Key: (4096 bit)
Modulus:
00:ae:ce:95:7e:db:50:a2:4a:71:8b:99:54:0d:b4:
ce:1e:6f:13:3c:a6:54:30:0f:5b:0a:76:56:8c:44:
75:98:58:a6:57:7d:d2:38:e8:05:3c:cc:a5:e9:86:
57:73:98:c5:17:52:7c:7e:c8:48:6c:6b:86:13:1c:
7a:72:5d:10:3a:15:72:8d:66:35:e3:55:06:3e:f7:
44:7f:1b:fc:9e:4a:2b:4a:28:dd:2c:34:63:8d:26:
cc:39:50:3b:44:e5:f8:fe:68:c8:c0:a5:94:ba:b1:
d5:e3:55:1d:d9:98:0c:03:23:3f:9d:d9:a0:79:2c:
e9:ce:c9:92:b8:1f:6e:83:cb:08:1e:e6:28:cf:55:
29:b3:f3:19:1b:fe:c2:d8:30:6e:ee:68:7e:80:c3:
9a:53:77:d1:ae:2a:21:ee:82:94:d7:b5:f3:8f:a3:
98:f8:85:c6:c9:94:72:f3:1e:61:45:84:97:e4:25:
69:c8:5e:11:2c:75:2a:85:a6:b4:75:50:5f:a1:6c:
0a:54:1e:78:ab:25:a3:2e:04:18:21:68:86:11:3d:
90:09:95:02:aa:fc:32:2c:c5:ed:ac:d1:14:3c:d7:
fc:c3:a3:9f:dd:52:07:eb:2f:a7:fc:22:5e:2c:23:
ad:f6:f5:1e:90:db:3f:32:eb:10:38:34:c3:f0:40:
5d:c9:0b:d0:01:fd:78:73:0b:80:92:75:0c:24:76:
c1:6d:93:42:86:4b:a0:6d:99:7b:72:46:b6:52:b1:
2f:47:90:a0:ed:d8:93:71:23:c4:20:c8:63:04:a1:
f6:b6:d8:6e:6b:20:1a:2b:56:43:02:47:5e:77:ae:
4e:00:d5:ec:05:f6:e8:a4:ab:aa:8b:14:8b:b9:da:
d4:a6:e6:c6:c2:35:5a:fd:24:51:7d:29:bb:3c:d3:
fd:a7:bf:a9:5b:77:5a:e1:b1:7b:51:ab:29:a4:15:
e7:ac:f6:2a:1e:38:68:bb:f6:6f:60:e4:26:34:cc:
45:08:2b:e0:71:9a:8e:67:e3:0d:d4:67:63:0b:76:
27:bd:ff:8d:9c:78:e5:b8:55:f0:ce:c1:35:b7:b6:
e7:44:60:60:25:ae:f1:0f:3d:c6:7e:25:03:a3:c8:
87:f8:3d:cd:4b:06:1b:d1:94:63:31:50:33:5b:3f:
3c:66:a8:4d:df:2a:b4:76:a4:fa:54:73:43:09:ac:
6c:21:0b:9c:35:e9:14:ca:25:cd:f1:72:c1:fe:0f:
aa:56:59:1d:ea:45:a7:ab:f5:41:a5:d1:50:3d:da:
f0:71:ff:8b:d2:3b:04:0a:d2:80:e9:17:d6:9a:a3:
1a:5f:19:9b:a0:ef:08:36:d4:88:65:2b:50:42:10:
14:e1:a9
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Basic Constraints:
CA:TRUE
X509v3 Key Usage:
Certificate Sign, CRL Sign
X509v3 Subject Key Identifier:
B3:5D:82:13:B6:1C:44:59:8C:0A:4E:DB:2B:18:98:77:0D:7A:2F:5B
- admin 용도의 인증서 생성
# Create Client and Server Certificates : admin
openssl genrsa -out admin.key 4096
ls -l admin.key
# ca.conf 에 admin 섹션
cat ca.conf
-------------------------------------------
[admin]
distinguished_name = admin_distinguished_name
prompt = no
req_extensions = default_req_extensions
[admin_distinguished_name]
CN = admin
O = system:masters
[default_req_extensions] # 공통 CSR 확장
basicConstraints = CA:FALSE
extendedKeyUsage = clientAuth
keyUsage = critical, digitalSignature, keyEncipherment
nsCertType = client
nsComment = "Admin Client Certificate"
subjectKeyIdentifier = hash
-------------------------------------------
# csr 파일 생성 : admin.key 개인키를 사용해 'CN=admin, O=system:masters'인 Kubernetes 관리자용 클라이언트 인증서 요청(admin.csr) 생성
openssl req -new -key admin.key -sha256 \
-config ca.conf -section admin \
-out admin.csr
ls -l admin.csr
openssl req -in admin.csr -text -noout # CSR 전체 내용 확인
# ca에 csr 요청을 통한 crt 파일 생성
## -req : CSR를 입력으로 받아 인증서를 생성, self-signed 아님, CA가 서명하는 방식
## -days 3653 : 인증서 유효기간 3653일 (약 10년)
## -copy_extensions copyall : CSR에 포함된 모든 X.509 extensions를 인증서로 복사
## -CAcreateserial : CA 시리얼 번호 파일 자동 생성, 다음 인증서 발급 시 재사용, 기본 생성 파일(ca.srl)
openssl x509 -req -days 3653 -in admin.csr \
-copy_extensions copyall \
-sha256 -CA ca.crt \
-CAkey ca.key \
-CAcreateserial \
-out admin.crt
Certificate request self-signature ok
subject=CN = admin, O = system:masters
ls -l admin.crt
openssl x509 -in admin.crt -text -noout
...
Issuer: C = US, ST = Washington, L = Seattle, CN = CA
Validity
Not Before: Jan 3 01:01:40 2026 GMT
Not After : Jan 4 01:01:40 2036 GMT
Subject: CN = admin, O = system:masters
...
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
Netscape Cert Type:
SSL Client
Netscape Comment:
Admin Client Certificate
...
- 나머진 인증서 생성
# ca.conf 수정
cat ca.conf | grep system:kube-scheduler
CN = system:kube-scheduler
O = system:system:kube-scheduler
sed -i 's/system:system:kube-scheduler/system:kube-scheduler/' ca.conf
cat ca.conf | grep system:kube-scheduler
CN = system:kube-scheduler
O = system:kube-scheduler
# 변수 지정
certs=(
"node-0" "node-1"
"kube-proxy" "kube-scheduler"
"kube-controller-manager"
"kube-api-server"
"service-accounts"
)
# 확인
echo ${certs[*]}
node-0 node-1 kube-proxy kube-scheduler kube-controller-manager kube-api-server service-accounts
# 개인키 생성, csr 생성, 인증서 생성
for i in ${certs[*]}; do
openssl genrsa -out "${i}.key" 4096
openssl req -new -key "${i}.key" -sha256 \
-config "ca.conf" -section ${i} \
-out "${i}.csr"
openssl x509 -req -days 3653 -in "${i}.csr" \
-copy_extensions copyall \
-sha256 -CA "ca.crt" \
-CAkey "ca.key" \
-CAcreateserial \
-out "${i}.crt"
done
Certificate request self-signature ok
subject=CN = system:node:node-0, O = system:nodes, C = US, ST = Washington, L = Seattle
Certificate request self-signature ok
subject=CN = system:node:node-1, O = system:nodes, C = US, ST = Washington, L = Seattle
Certificate request self-signature ok
subject=CN = system:kube-proxy, O = system:node-proxier, C = US, ST = Washington, L = Seattle
Certificate request self-signature ok
subject=CN = system:kube-scheduler, O = system:kube-scheduler, C = US, ST = Washington, L = Seattle
Certificate request self-signature ok
subject=CN = system:kube-controller-manager, O = system:kube-controller-manager, C = US, ST = Washington, L = Seattle
Certificate request self-signature ok
subject=CN = kubernetes, C = US, ST = Washington, L = Seattle
Certificate request self-signature ok
subject=CN = service-accounts
ls -1 *.crt *.key *.csr
admin.crt
admin.csr
admin.key
ca.crt
ca.key
kube-api-server.crt
kube-api-server.csr
kube-api-server.key
kube-controller-manager.crt
kube-controller-manager.csr
kube-controller-manager.key
kube-proxy.crt
kube-proxy.csr
kube-proxy.key
kube-scheduler.crt
kube-scheduler.csr
kube-scheduler.key
node-0.crt
node-0.csr
node-0.key
node-1.crt
node-1.csr
node-1.key
service-accounts.crt
service-accounts.csr
service-accounts.key
# 인증서 정보 확인
openssl x509 -in node-0.crt -text -noout
Issuer: C = US, ST = Washington, L = Seattle, CN = CA
Validity
Not Before: Jan 3 02:41:09 2026 GMT
Not After : Jan 4 02:41:09 2036 GMT
Subject: CN = system:node:node-0, O = system:nodes, C = US, ST = Washington, L = Seattle
...
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
X509v3 Extended Key Usage:
TLS Web Client Authentication, TLS Web Server Authentication
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
Netscape Cert Type:
SSL Client
Netscape Comment:
Node-0 Certificate
X509v3 Subject Alternative Name:
DNS:node-0, IP Address:127.0.0.1
openssl x509 -in node-1.crt -text -noout
Subject: CN = system:node:node-1, O = system:nodes, C = US, ST = Washington, L = Seattle
X509v3 Subject Alternative Name:
DNS:node-1, IP Address:127.0.0.1
openssl x509 -in kube-proxy.crt -text -noout
Issuer: C = US, ST = Washington, L = Seattle, CN = CA
Validity
Not Before: Jan 3 02:41:13 2026 GMT
Not After : Jan 4 02:41:13 2036 GMT
Subject: CN = system:kube-proxy, O = system:node-proxier, C = US, ST = Washington, L = Seattle
...
X509v3 extensions:
Netscape Cert Type:
SSL Client
Netscape Comment:
Kube Proxy Certificate
X509v3 Subject Alternative Name:
DNS:kube-proxy, IP Address:127.0.0.1
openssl x509 -in kube-scheduler.crt -text -noout
Issuer: C = US, ST = Washington, L = Seattle, CN = CA
Validity
Not Before: Jan 3 02:41:13 2026 GMT
Not After : Jan 4 02:41:13 2036 GMT
Subject: CN = system:kube-scheduler, O = system:kube-scheduler, C = US, ST = Washington, L = Seattle
Netscape Cert Type:
SSL Client
Netscape Comment:
Kube Scheduler Certificate
X509v3 Subject Alternative Name:
DNS:kube-scheduler, IP Address:127.0.0.1
openssl x509 -in kube-controller-manager.crt -text -noout
Validity
Not Before: Jan 3 02:41:16 2026 GMT
Not After : Jan 4 02:41:16 2036 GMT
Subject: CN = system:kube-controller-manager, O = system:kube-controller-manager, C = US, ST = Washington, L = Seattle
Netscape Cert Type:
SSL Client
Netscape Comment:
Kube Controller Manager Certificate
X509v3 Subject Alternative Name:
DNS:kube-controller-manager, IP Address:127.0.0.1
# api-server : SAN 정보에 10.32.0.1 은 kubernetes (Service) ClusterIP. 다른 인증서와 다르게 SSL Server 역할 추가 확인
openssl x509 -in kube-api-server.crt -text -noout
Issuer: C = US, ST = Washington, L = Seattle, CN = CA
Validity
Not Before: Jan 3 02:41:17 2026 GMT
Not After : Jan 4 02:41:17 2036 GMT
Subject: CN = kubernetes, C = US, ST = Washington, L = Seattle
Netscape Cert Type:
SSL Client, SSL Server
Netscape Comment:
Kube API Server Certificate
X509v3 Subject Alternative Name:
IP Address:127.0.0.1, IP Address:10.32.0.1, DNS:kubernetes, DNS:kubernetes.default, DNS:kubernetes.default.svc, DNS:kubernetes.default.svc.cluster, DNS:kubernetes.svc.cluster.local, DNS:server.kubernetes.local, DNS:api-server.kubernetes.local
# service-accounts
openssl x509 -in service-accounts.crt -text -noout
Issuer: C = US, ST = Washington, L = Seattle, CN = CA
Validity
Not Before: Jan 3 02:41:17 2026 GMT
Not After : Jan 4 02:41:17 2036 GMT
Subject: CN = service-accounts
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
Netscape Cert Type:
SSL Client
Netscape Comment:
Admin Client Certificate
- 인증서 복사 : 지금까지 생성한 인증서 파일들을 클러스터 노드에 복사
# Copy the appropriate certificates and private keys to the node-0 and node-1 machines
for host in node-0 node-1; do
ssh root@${host} mkdir /var/lib/kubelet/
scp ca.crt root@${host}:/var/lib/kubelet/
scp ${host}.crt \
root@${host}:/var/lib/kubelet/kubelet.crt
scp ${host}.key \
root@${host}:/var/lib/kubelet/kubelet.key
done
# 확인
ssh node-0 ls -l /var/lib/kubelet
ssh node-1 ls -l /var/lib/kubelet
# Copy the appropriate certificates and private keys to the server machine
scp \
ca.key ca.crt \
kube-api-server.key kube-api-server.crt \
service-accounts.key service-accounts.crt \
root@server:~/
# 확인
ssh server ls -l /root

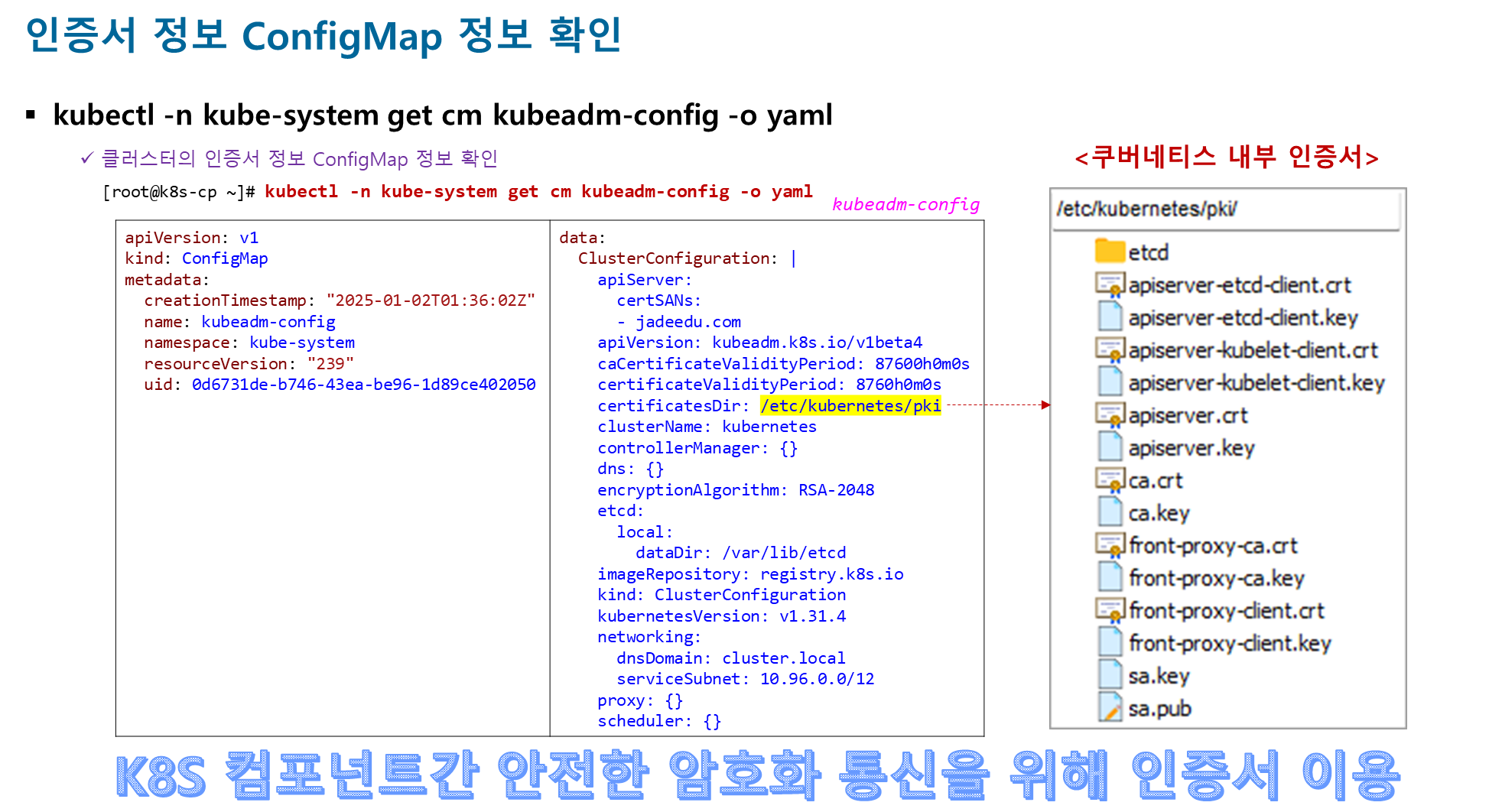

(참고) 운영환경에서의 쿠버네티스 인증서 관리
5. Generating Kubernetes Configuration Files for Authentication
이 실습에서는 Kubernetes 클라이언트가 Kubernetes API 서버에 연결하고 인증하도록 구성하는 kubeconfig 파일(일반적으로 kubeconfig라고 함)을 생성합니다.
The kubelet Kubernetes Configuration File
- Kubelet용 kubeconfig 파일을 생성할 때는 Kubelet의 노드 이름과 일치하는 클라이언트 인증서를 사용해야 합니다.
- 이렇게 하면 Kubelet이 Kubernetes Node Authorizer 에 의해 올바르게 권한 부여됩니다.
- Node Authorization : Kubelet이 수행하는 API 요청에 대한 권한을 특별히 부여하는 특수 목적의 권한 부여 모드
# (참고) apiserver 파드 args 정보를 보면 API 서버 인증이 Node,RBAC 순서임
# kubelet 은 apiserver 인증시 "Node Authorization"을 이용함
kubectl describe pod -n kube-system kube-apiserver-myk8s-control-plane
Command:
kube-apiserver
--authorization-mode=Node,RBAC
# Generate a kubeconfig file for the node-0 and node-1 worker nodes
# config set-cluster
kubectl config set-cluster kubernetes-the-hard-way \
--certificate-authority=ca.crt \
--embed-certs=true \
--server=https://server.kubernetes.local:6443 \
--kubeconfig=node-0.kubeconfig && ls -l node-0.kubeconfig && cat node-0.kubeconfig
kubectl config set-cluster kubernetes-the-hard-way \
--certificate-authority=ca.crt \
--embed-certs=true \
--server=https://server.kubernetes.local:6443 \
--kubeconfig=node-1.kubeconfig && ls -l node-1.kubeconfig && cat node-1.kubeconfig
# config set-credentials
kubectl config set-credentials system:node:node-0 \
--client-certificate=node-0.crt \
--client-key=node-0.key \
--embed-certs=true \
--kubeconfig=node-0.kubeconfig && cat node-0.kubeconfig
kubectl config set-credentials system:node:node-1 \
--client-certificate=node-1.crt \
--client-key=node-1.key \
--embed-certs=true \
--kubeconfig=node-1.kubeconfig && cat node-1.kubeconfig
# set-context : default 추가
kubectl config set-context default \
--cluster=kubernetes-the-hard-way \
--user=system:node:node-0 \
--kubeconfig=node-0.kubeconfig && cat node-0.kubeconfig
kubectl config set-context default \
--cluster=kubernetes-the-hard-way \
--user=system:node:node-1 \
--kubeconfig=node-1.kubeconfig && cat node-1.kubeconfig
...
contexts:
- context:
cluster: kubernetes-the-hard-way
user: system:node:node-0
name: default
# use-context : current-context 에 default 추가
kubectl config use-context default \
--kubeconfig=node-0.kubeconfig
kubectl config use-context default \
--kubeconfig=node-1.kubeconfig
...
current-context: default
#
ls -l *.kubeconfig
-rw------- 1 root root 10157 Jan 3 14:55 node-0.kubeconfig
-rw------- 1 root root 10068 Jan 3 14:50 node-1.kubeconfig
- The kube-proxy Kubernetes Configuration File
# Generate a kubeconfig file for the kube-proxy service
kubectl config set-cluster kubernetes-the-hard-way \
--certificate-authority=ca.crt \
--embed-certs=true \
--server=https://server.kubernetes.local:6443 \
--kubeconfig=kube-proxy.kubeconfig
kubectl config set-credentials system:kube-proxy \
--client-certificate=kube-proxy.crt \
--client-key=kube-proxy.key \
--embed-certs=true \
--kubeconfig=kube-proxy.kubeconfig
kubectl config set-context default \
--cluster=kubernetes-the-hard-way \
--user=system:kube-proxy \
--kubeconfig=kube-proxy.kubeconfig
kubectl config use-context default \
--kubeconfig=kube-proxy.kubeconfig
# 확인
cat kube-proxy.kubeconfig
- The kube-controller-manager Kubernetes Configuration File
# Generate a kubeconfig file for the kube-controller-manager service
kubectl config set-cluster kubernetes-the-hard-way \
--certificate-authority=ca.crt \
--embed-certs=true \
--server=https://server.kubernetes.local:6443 \
--kubeconfig=kube-controller-manager.kubeconfig
kubectl config set-credentials system:kube-controller-manager \
--client-certificate=kube-controller-manager.crt \
--client-key=kube-controller-manager.key \
--embed-certs=true \
--kubeconfig=kube-controller-manager.kubeconfig
kubectl config set-context default \
--cluster=kubernetes-the-hard-way \
--user=system:kube-controller-manager \
--kubeconfig=kube-controller-manager.kubeconfig
kubectl config use-context default \
--kubeconfig=kube-controller-manager.kubeconfig
# 확인
cat kube-controller-manager.kubeconfig
- The kube-scheduler Kubernetes Configuration File
# Generate a kubeconfig file for the kube-scheduler service
kubectl config set-cluster kubernetes-the-hard-way \
--certificate-authority=ca.crt \
--embed-certs=true \
--server=https://server.kubernetes.local:6443 \
--kubeconfig=kube-scheduler.kubeconfig
kubectl config set-credentials system:kube-scheduler \
--client-certificate=kube-scheduler.crt \
--client-key=kube-scheduler.key \
--embed-certs=true \
--kubeconfig=kube-scheduler.kubeconfig
kubectl config set-context default \
--cluster=kubernetes-the-hard-way \
--user=system:kube-scheduler \
--kubeconfig=kube-scheduler.kubeconfig
kubectl config use-context default \
--kubeconfig=kube-scheduler.kubeconfig
# 확인
cat kube-scheduler.kubeconfig
- The admin Kubernetes Configuration File
# Generate a kubeconfig file for the admin user
kubectl config set-cluster kubernetes-the-hard-way \
--certificate-authority=ca.crt \
--embed-certs=true \
--server=https://127.0.0.1:6443 \
--kubeconfig=admin.kubeconfig
kubectl config set-credentials admin \
--client-certificate=admin.crt \
--client-key=admin.key \
--embed-certs=true \
--kubeconfig=admin.kubeconfig
kubectl config set-context default \
--cluster=kubernetes-the-hard-way \
--user=admin \
--kubeconfig=admin.kubeconfig
kubectl config use-context default \
--kubeconfig=admin.kubeconfig
# 확인
cat admin.kubeconfig
- Distribute the Kubernetes Configuration Files
#
ls -l *.kubeconfig
-rw------- 1 root root 9949 Jan 3 15:00 admin.kubeconfig
-rw------- 1 root root 10305 Jan 3 14:59 kube-controller-manager.kubeconfig
-rw------- 1 root root 10187 Jan 3 14:58 kube-proxy.kubeconfig
-rw------- 1 root root 10231 Jan 3 14:59 kube-scheduler.kubeconfig
-rw------- 1 root root 10157 Jan 3 14:55 node-0.kubeconfig
-rw------- 1 root root 10068 Jan 3 14:50 node-1.kubeconfig
# Copy the kubelet and kube-proxy kubeconfig files to the node-0 and node-1 machines
for host in node-0 node-1; do
ssh root@${host} "mkdir -p /var/lib/{kube-proxy,kubelet}"
scp kube-proxy.kubeconfig \
root@${host}:/var/lib/kube-proxy/kubeconfig \
scp ${host}.kubeconfig \
root@${host}:/var/lib/kubelet/kubeconfig
done
# 확인
ssh node-0 ls -l /var/lib/*/kubeconfig
ssh node-1 ls -l /var/lib/*/kubeconfig
# Copy the kube-controller-manager and kube-scheduler kubeconfig files to the server machine
scp admin.kubeconfig \
kube-controller-manager.kubeconfig \
kube-scheduler.kubeconfig \
root@server:~/
# 확인
ssh server ls -l /root/*.kubeconfig
6. Generating the Data Encryption Config and Key
Kubernetes는 클러스터 상태, 애플리케이션 구성, 시크릿 등 다양한 데이터를 저장합니다. Kubernetes는 저장된 클러스터 데이터를 암호화하는 기능을 지원합니다.
이 실습에서는 Kubernetes 시크릿을 암호화하는 데 적합한 암호화 키와 암호화 구성을 생성합니다.
# The Encryption Key
# Generate an encryption key
export ENCRYPTION_KEY=$(head -c 32 /dev/urandom | base64)
echo $ENCRYPTION_KEY
JMnUP1PUUORZE9iadPdzYifnvPVIniSzOW6NUoMofVc=
# The Encryption Config File
# Create the encryption-config.yaml encryption config file
# (참고) 실제 etcd 값에 기록되는 헤더 : k8s:enc:aescbc:v1:key1:<ciphertext>
cat configs/encryption-config.yaml
kind: EncryptionConfiguration # kube-apiserver가 etcd에 저장할 리소스를 어떻게 암호화할지 정의
apiVersion: apiserver.config.k8s.io/v1 # --encryption-provider-config 플래그로 참조
resources:
- resources:
- secrets # 암호화 대상 Kubernetes 리소스 : 여기서는 Secret 리소스만 암호화
providers: # 지원 providers(위 부터 적용됨) : identity, aescbc, aesgcm, kms v2, secretbox
- aescbc: # etcd에 저장될 Secret을 AES-CBC 방식으로 암호화
keys:
- name: key1 # 키 식별자 (etcd 데이터에 기록됨)
secret: ${ENCRYPTION_KEY}
- identity: {} # 암호화하지 않음 (Plaintext), 주로 하위 호환성 / 점진적 암호화 목적
# aescbc를 첫 번째에, identity를 두 번째에 배치하는 것은 "새로운 데이터는 무조건 암호화해서 저장하되, 이전에 평문으로 저장되었던 데이터도 문제없이 읽어 들이겠다"는 하위 호환성 전략을 의미
# 설명 출처 : https://yyeon2.medium.com/bootstrap-kubernetes-the-hard-way-48644e868550
envsubst < configs/encryption-config.yaml > encryption-config.yaml
cat encryption-config.yaml
# Copy the encryption-config.yaml encryption config file to each controller instance:
scp encryption-config.yaml root@server:~/
ssh server ls -l /root/encryption-config.yaml
7. Bootstrapping the etcd Cluster
https://github.com/kelseyhightower/kubernetes-the-hard-way/blob/master/docs/07-bootstrapping-etcd.md
Kubernetes 구성 요소는 상태를 저장하지 않으며 클러스터 상태를 etcd에 저장합니다. 이 실습에서는 단일 노드로 구성된 etcd 클러스터를 부트스트랩합니다.
etcd 기능을 리눅스 systemd unit 으로 관리하여 etcd 서비스 기
# Prerequisites
# hostname 변경 : controller -> server
# http 평문 통신!
# Each etcd member must have a unique name within an etcd cluster.
# Set the etcd name to match the hostname of the current compute instance:
cat units/etcd.service | grep controller
ETCD_NAME=server
cat > units/etcd.service <<EOF
[Unit]
Description=etcd
Documentation=https://github.com/etcd-io/etcd
[Service]
Type=notify
ExecStart=/usr/local/bin/etcd \\
--name ${ETCD_NAME} \\
--initial-advertise-peer-urls http://127.0.0.1:2380 \\
--listen-peer-urls http://127.0.0.1:2380 \\
--listen-client-urls http://127.0.0.1:2379 \\
--advertise-client-urls http://127.0.0.1:2379 \\
--initial-cluster-token etcd-cluster-0 \\
--initial-cluster ${ETCD_NAME}=http://127.0.0.1:2380 \\
--initial-cluster-state new \\
--data-dir=/var/lib/etcd
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF
cat units/etcd.service | grep server
# Copy etcd binaries and systemd unit files to the server machine
scp \
downloads/controller/etcd \
downloads/client/etcdctl \
units/etcd.service \
root@server:~/
# 아래는 server 가상머신 접속 후 명령 실행
# The commands in this lab must be run on the server machine. Login to the server machine using the ssh command. Example:
ssh root@server
-------------------------------------------------------------------
# Bootstrapping an etcd Cluster
# Install the etcd Binaries
# Extract and install the etcd server and the etcdctl command line utility
pwd
mv etcd etcdctl /usr/local/bin/
# Configure the etcd Server
mkdir -p /etc/etcd /var/lib/etcd
chmod 700 /var/lib/etcd
cp ca.crt kube-api-server.key kube-api-server.crt /etc/etcd/
# Create the etcd.service systemd unit file:
mv etcd.service /etc/systemd/system/
tree /etc/systemd/system/
# Start the etcd Server
systemctl daemon-reload
systemctl enable etcd
systemctl start etcd
# 확인
systemctl status etcd --no-pager
ss -tnlp | grep etcd
LISTEN 0 4096 127.0.0.1:2380 0.0.0.0:* users:(("etcd",pid=2829,fd=3))
LISTEN 0 4096 127.0.0.1:2379 0.0.0.0:* users:(("etcd",pid=2829,fd=6))
# List the etcd cluster members
etcdctl member list
702b0a34e2cfd39, started, server, http://127.0.0.1:2380, http://127.0.0.1:2379, false
etcdctl member list -w table
etcdctl endpoint status -w table
exit
-------------------------------------------------------------------
8. Bootstrapping the Kubernetes Control Plane
이 실습에서는 Kubernetes 컨트롤 플레인을 부트스트랩합니다. server 머신에는 Kubernetes API 서버, 스케줄러 및 컨트롤러 관리자가 설치됩니다.
쿠버네티스 POD / Service 리소스의 네트워크 CIDR 정보는 아래와 같이 구성할 예정입니다.
| 항목 | 네트워크 대역 or IP |
| clusterCIDR | 10.200.0.0/16 |
| → node-0 PodCIDR | 10.200.0.0/24 |
| → node-1 PodCIDR | 10.200.1.0/24 |
| ServiceCIDR | 10.32.0.0/24 |
| → api clusterIP | 10.32.0.1 |
# Prerequisites
# kube-apiserver.service 수정 : service-cluster-ip-range 추가
# https://github.com/kelseyhightower/kubernetes-the-hard-way/issues/905
# service-cluster-ip 값은 ca.conf 에 설정한 [kube-api-server_alt_names] 항목의 Service IP 범위
cat ca.conf | grep '\[kube-api-server_alt_names' -A2
[kube-api-server_alt_names]
IP.0 = 127.0.0.1
IP.1 = 10.32.0.1
cat units/kube-apiserver.service
cat << EOF > units/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
[Service]
ExecStart=/usr/local/bin/kube-apiserver \\
--allow-privileged=true \\
--apiserver-count=1 \\
--audit-log-maxage=30 \\
--audit-log-maxbackup=3 \\
--audit-log-maxsize=100 \\
--audit-log-path=/var/log/audit.log \\
--authorization-mode=Node,RBAC \\
--bind-address=0.0.0.0 \\
--client-ca-file=/var/lib/kubernetes/ca.crt \\
--enable-admission-plugins=NamespaceLifecycle,NodeRestriction,LimitRanger,ServiceAccount,DefaultStorageClass,ResourceQuota \\
--etcd-servers=http://127.0.0.1:2379 \\
--event-ttl=1h \\
--encryption-provider-config=/var/lib/kubernetes/encryption-config.yaml \\
--kubelet-certificate-authority=/var/lib/kubernetes/ca.crt \\
--kubelet-client-certificate=/var/lib/kubernetes/kube-api-server.crt \\
--kubelet-client-key=/var/lib/kubernetes/kube-api-server.key \\
--runtime-config='api/all=true' \\
--service-account-key-file=/var/lib/kubernetes/service-accounts.crt \\
--service-account-signing-key-file=/var/lib/kubernetes/service-accounts.key \\
--service-account-issuer=https://server.kubernetes.local:6443 \\
--service-cluster-ip-range=10.32.0.0/24 \\
--service-node-port-range=30000-32767 \\
--tls-cert-file=/var/lib/kubernetes/kube-api-server.crt \\
--tls-private-key-file=/var/lib/kubernetes/kube-api-server.key \\
--v=2
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF
cat units/kube-apiserver.service
# kube-apiserver가 kubelet(Node)에 접근할 수 있도록 허용하는 '시스템 내부용 RBAC' 설정
cat configs/kube-apiserver-to-kubelet.yaml ; echo
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
annotations:
rbac.authorization.kubernetes.io/autoupdate: "true" # Kubernetes가 업그레이드 시 자동 관리
labels:
kubernetes.io/bootstrapping: rbac-defaults
name: system:kube-apiserver-to-kubelet
rules:
- apiGroups:
- "" # Core API group (v1) : Node 관련 서브리소스는 core group에 속함
resources: # 아래 처럼, kubelet API 대부분을 포괄
- nodes/proxy ## apiserver → kubelet 프록시 통신
- nodes/stats ## 노드/파드 리소스 통계 (cAdvisor)
- nodes/log ## metrics-server / top 명령
- nodes/spec ## kubectl logs
- nodes/metrics ## metrics-server / top 명령
verbs:
- "*" # 대상은 “nodes 하위 리소스”로 한정 + 모든 동작 허용 (get, list, watch, create, proxy 등)
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: system:kube-apiserver # 누가 이 권한을 쓰는가? → kube-apiserver 자신
namespace: ""
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:kube-apiserver-to-kubelet
subjects:
- apiGroup: rbac.authorization.k8s.io
kind: User
name: kubernetes # 사용자 kubernetes ,이 사용자는 kube-apiserver가 사용하는 클라이언트 인증서의 CN
# api-server : Subject CN 확인
openssl x509 -in kube-api-server.crt -text -noout
Subject: CN = kubernetes,
# api -> kubelet 호출 시 Flow
kube-apiserver (client)
|
| (TLS client cert, CN=kubernetes)
↓
kubelet API Server 역할 (/stats, /log, /metrics)
|
↓
RBAC 평가:
User = kubernetes
→ ClusterRoleBinding system:kube-apiserver 매칭
→ ClusterRole system:kube-apiserver-to-kubelet 권한 부여
# kube-scheduler
cat units/kube-scheduler.service ; echo
cat configs/kube-scheduler.yaml ; echo
# kube-controller-manager : cluster-cidr 는 POD CIDR 포함하는 대역, service-cluster-ip-range 는 apiserver 설정 값 동일 설정.
cat units/kube-controller-manager.service ; echo
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
[Service]
ExecStart=/usr/local/bin/kube-controller-manager \
--bind-address=0.0.0.0 \
--cluster-cidr=10.200.0.0/16 \
--cluster-name=kubernetes \
--cluster-signing-cert-file=/var/lib/kubernetes/ca.crt \
--cluster-signing-key-file=/var/lib/kubernetes/ca.key \
--kubeconfig=/var/lib/kubernetes/kube-controller-manager.kubeconfig \
--root-ca-file=/var/lib/kubernetes/ca.crt \
--service-account-private-key-file=/var/lib/kubernetes/service-accounts.key \
--service-cluster-ip-range=10.32.0.0/24 \
--use-service-account-credentials=true \
--v=2
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
# Connect to the jumpbox and copy Kubernetes binaries and systemd unit files to the server machine
scp \
downloads/controller/kube-apiserver \
downloads/controller/kube-controller-manager \
downloads/controller/kube-scheduler \
downloads/client/kubectl \
units/kube-apiserver.service \
units/kube-controller-manager.service \
units/kube-scheduler.service \
configs/kube-scheduler.yaml \
configs/kube-apiserver-to-kubelet.yaml \
root@server:~/
# 확인
ssh server ls -l /root- Provision the Kubernetes Control Plane : kubectl 확인
ssh root@server
---------------------------------------------------------------
# Create the Kubernetes configuration directory:
pwd
mkdir -p /etc/kubernetes/config
# Install the Kubernetes binaries:
mv kube-apiserver \
kube-controller-manager \
kube-scheduler kubectl \
/usr/local/bin/
ls -l /usr/local/bin/kube-*
# Configure the Kubernetes API Server
mkdir -p /var/lib/kubernetes/
mv ca.crt ca.key \
kube-api-server.key kube-api-server.crt \
service-accounts.key service-accounts.crt \
encryption-config.yaml \
/var/lib/kubernetes/
ls -l /var/lib/kubernetes/
## Create the kube-apiserver.service systemd unit file:
mv kube-apiserver.service \
/etc/systemd/system/kube-apiserver.service
tree /etc/systemd/system
# Configure the Kubernetes Controller Manager
## Move the kube-controller-manager kubeconfig into place:
mv kube-controller-manager.kubeconfig /var/lib/kubernetes/
## Create the kube-controller-manager.service systemd unit file:
mv kube-controller-manager.service /etc/systemd/system/
# Configure the Kubernetes Scheduler
## Move the kube-scheduler kubeconfig into place:
mv kube-scheduler.kubeconfig /var/lib/kubernetes/
## Create the kube-scheduler.yaml configuration file:
mv kube-scheduler.yaml /etc/kubernetes/config/
## Create the kube-scheduler.service systemd unit file:
mv kube-scheduler.service /etc/systemd/system/
# Start the Controller Services : Allow up to 10 seconds for the Kubernetes API Server to fully initialize.
systemctl daemon-reload
systemctl enable kube-apiserver kube-controller-manager kube-scheduler
systemctl start kube-apiserver kube-controller-manager kube-scheduler
# 확인
ss -tlp | grep kube
LISTEN 0 4096 *:6443 *:* users:(("kube-apiserver",pid=3071,fd=3))
LISTEN 0 4096 *:10257 *:* users:(("kube-controller",pid=3072,fd=3))
LISTEN 0 4096 *:10259 *:* users:(("kube-scheduler",pid=3073,fd=3))
systemctl is-active kube-apiserver
systemctl status kube-apiserver --no-pager
journalctl -u kube-apiserver --no-pager
systemctl status kube-scheduler --no-pager
systemctl status kube-controller-manager --no-pager
# Verify this using the kubectl command line tool:
kubectl cluster-info dump --kubeconfig admin.kubeconfig
kubectl cluster-info --kubeconfig admin.kubeconfig
Kubernetes control plane is running at https://127.0.0.1:6443
kubectl get node --kubeconfig admin.kubeconfig
kubectl get pod -A --kubeconfig admin.kubeconfig
kubectl get service,ep --kubeconfig admin.kubeconfig
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.32.0.1 <none> 443/TCP 110m
NAME ENDPOINTS AGE
endpoints/kubernetes 10.0.2.15:6443 110m
# clusterroles 확인
kubectl get clusterroles --kubeconfig admin.kubeconfig
NAME CREATED AT
admin 2026-01-03T08:42:54Z
cluster-admin 2026-01-03T08:42:54Z
edit 2026-01-03T08:42:54Z
system:aggregate-to-admin 2026-01-03T08:42:54Z
system:aggregate-to-edit 2026-01-03T08:42:54Z
system:aggregate-to-view 2026-01-03T08:42:54Z
system:auth-delegator 2026-01-03T08:42:54Z
system:basic-user 2026-01-03T08:42:54Z
system:certificates.k8s.io:certificatesigningrequests:nodeclient 2026-01-03T08:42:54Z
system:certificates.k8s.io:certificatesigningrequests:selfnodeclient 2026-01-03T08:42:54Z
system:certificates.k8s.io:kube-apiserver-client-approver 2026-01-03T08:42:54Z
system:certificates.k8s.io:kube-apiserver-client-kubelet-approver 2026-01-03T08:42:54Z
system:certificates.k8s.io:kubelet-serving-approver 2026-01-03T08:42:54Z
system:certificates.k8s.io:legacy-unknown-approver 2026-01-03T08:42:54Z
system:controller:attachdetach-controller 2026-01-03T08:42:54Z
system:controller:certificate-controller 2026-01-03T08:42:54Z
system:controller:clusterrole-aggregation-controller 2026-01-03T08:42:54Z
system:controller:cronjob-controller 2026-01-03T08:42:54Z
system:controller:daemon-set-controller 2026-01-03T08:42:54Z
system:controller:deployment-controller 2026-01-03T08:42:54Z
system:controller:disruption-controller 2026-01-03T08:42:54Z
system:controller:endpoint-controller 2026-01-03T08:42:54Z
system:controller:endpointslice-controller 2026-01-03T08:42:54Z
system:controller:endpointslicemirroring-controller 2026-01-03T08:42:54Z
system:controller:ephemeral-volume-controller 2026-01-03T08:42:54Z
system:controller:expand-controller 2026-01-03T08:42:54Z
system:controller:generic-garbage-collector 2026-01-03T08:42:54Z
system:controller:horizontal-pod-autoscaler 2026-01-03T08:42:54Z
system:controller:job-controller 2026-01-03T08:42:54Z
system:controller:legacy-service-account-token-cleaner 2026-01-03T08:42:54Z
system:controller:namespace-controller 2026-01-03T08:42:54Z
system:controller:node-controller 2026-01-03T08:42:54Z
system:controller:persistent-volume-binder 2026-01-03T08:42:54Z
system:controller:pod-garbage-collector 2026-01-03T08:42:54Z
system:controller:pv-protection-controller 2026-01-03T08:42:54Z
system:controller:pvc-protection-controller 2026-01-03T08:42:54Z
system:controller:replicaset-controller 2026-01-03T08:42:54Z
system:controller:replication-controller 2026-01-03T08:42:54Z
system:controller:resourcequota-controller 2026-01-03T08:42:54Z
system:controller:root-ca-cert-publisher 2026-01-03T08:42:54Z
system:controller:route-controller 2026-01-03T08:42:54Z
system:controller:service-account-controller 2026-01-03T08:42:54Z
system:controller:service-controller 2026-01-03T08:42:54Z
system:controller:statefulset-controller 2026-01-03T08:42:54Z
system:controller:ttl-after-finished-controller 2026-01-03T08:42:54Z
system:controller:ttl-controller 2026-01-03T08:42:54Z
system:controller:validatingadmissionpolicy-status-controller 2026-01-03T08:42:54Z
system:discovery 2026-01-03T08:42:54Z
system:heapster 2026-01-03T08:42:54Z
system:kube-aggregator 2026-01-03T08:42:54Z
system:kube-controller-manager 2026-01-03T08:42:54Z
system:kube-dns 2026-01-03T08:42:54Z
system:kube-scheduler 2026-01-03T08:42:54Z
system:kubelet-api-admin 2026-01-03T08:42:54Z
system:monitoring 2026-01-03T08:42:54Z
system:node 2026-01-03T08:42:54Z
system:node-bootstrapper 2026-01-03T08:42:54Z
system:node-problem-detector 2026-01-03T08:42:54Z
system:node-proxier 2026-01-03T08:42:54Z
system:persistent-volume-provisioner 2026-01-03T08:42:54Z
system:public-info-viewer 2026-01-03T08:42:54Z
system:service-account-issuer-discovery 2026-01-03T08:42:54Z
system:volume-scheduler 2026-01-03T08:42:54Z
view 2026-01-03T08:42:54Z
kubectl describe clusterroles system:kube-scheduler --kubeconfig admin.kubeconfig
# kube-scheduler subject 확인
kubectl get clusterrolebindings --kubeconfig admin.kubeconfig
kubectl describe clusterrolebindings system:kube-scheduler --kubeconfig admin.kubeconfig
Role:
Kind: ClusterRole
Name: system:kube-scheduler
Subjects:
Kind Name Namespace
---- ---- ---------
User system:kube-scheduler
---------------------------------------------------------------
- RBAC for Kubelet Authorization
- 이 섹션에서는 Kubernetes API 서버가 각 작업자 노드에서 Kubelet API에 액세스할 수 있도록 RBAC 권한을 구성합니다.
- Kubelet API에 대한 액세스 권한은 메트릭, 로그를 검색하고 포드에서 명령을 실행하는 데 필요합니다.
- 이 튜토리얼에서는 Kubelet --authorization-mode 플래그를 Webhook으로 설정합니다.
- Webhook 모드에서는 SubjectAccessReview API를 사용하여 권한을 결정합니다.
ssh root@server # 이미 server 에 ssh 접속 상태
---------------------------------------------------------------
# api -> kubelet 접속을 위한 RBAC 설정
# Create the system:kube-apiserver-to-kubelet ClusterRole with permissions to access the Kubelet API and perform most common tasks associated with managing pods:
cat kube-apiserver-to-kubelet.yaml
kubectl apply -f kube-apiserver-to-kubelet.yaml --kubeconfig admin.kubeconfig
clusterrole.rbac.authorization.k8s.io/system:kube-apiserver-to-kubelet created
clusterrolebinding.rbac.authorization.k8s.io/system:kube-apiserver created
# 확인
kubectl get clusterroles system:kube-apiserver-to-kubelet --kubeconfig admin.kubeconfig
kubectl get clusterrolebindings system:kube-apiserver --kubeconfig admin.kubeconfig
---------------------------------------------------------------- jumpbox 서버에서 k8s controlplane 정상 동작 확인
# jumpbox 쉘에서 수행
curl -s -k --cacert ca.crt https://server.kubernetes.local:6443/version | jq
{
"major": "1",
"minor": "32",
"gitVersion": "v1.32.3",
"gitCommit": "32cc146f75aad04beaaa245a7157eb35063a9f99",
"gitTreeState": "clean",
"buildDate": "2025-03-11T19:52:21Z",
"goVersion": "go1.23.6",
"compiler": "gc",
"platform": "linux/arm64"
}
9. Bootstrapping the Kubernetes Worker Nodes
이 실습에서는 Kubernetes 워커 노드 두 개를 부트스트랩합니다. runc, container networking plugins, containerd, kubelet, and kube-proxy 구성 요소가 설치됩니다.
- 사전 준비
# cni(bridge) 파일과 kubelet-config 파일 작성 및 node-0/1에 전달
cat configs/10-bridge.conf | jq
cat configs/kubelet-config.yaml | yq # clusterDomain , clusterDNS 없어도 smoke test 까지 잘됨 -> 실습에서 coredns 미사용
kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
address: "0.0.0.0" # kubelet HTTPS 서버 바인딩 주소 : 모든 인터페이스에서 10250 포트 수신
authentication:
anonymous:
enabled: false # 익명 인증 비활성화
webhook:
enabled: true # 인증 요청을 kube-apiserver에 위임 : ServiceAccount 토큰, bootstrap 토큰 처리 가능
x509: # kubelet에 접근하는 클라이언트 인증서 검증용 CA
clientCAFile: "/var/lib/kubelet/ca.crt" # (상동) 대상 : kube-apiserver, metrics-server, kubectl (직접 접근 시)
authorization:
mode: Webhook # 인가 요청을 kube-apiserver에 위임 : Node Authorizer + RBAC 적용됨
cgroupDriver: systemd
containerRuntimeEndpoint: "unix:///var/run/containerd/containerd.sock" # CRI 엔드포인트
enableServer: true # kubelet API 서버 활성화 , false면 apiserver가 kubelet 접근 불가
failSwapOn: false
maxPods: 16 # 노드당 최대 파드 수 16개
memorySwap:
swapBehavior: NoSwap
port: 10250 # kubelet HTTPS API 포트 : 로그, exec, stats, metrics 접근에 사용
resolvConf: "/etc/resolv.conf" # 파드에 전달할 DNS 설정 파일
registerNode: true # kubelet이 API 서버에 Node 객체 자동 등록
runtimeRequestTimeout: "15m" # CRI 요청 최대 대기 시간 : 이미지 pull, container start 등
tlsCertFile: "/var/lib/kubelet/kubelet.crt" # TLS 서버 인증서 (kubelet 자신) : kubelet HTTPS 서버의 서버 인증서
tlsPrivateKeyFile: "/var/lib/kubelet/kubelet.key"
for HOST in node-0 node-1; do
SUBNET=$(grep ${HOST} machines.txt | cut -d " " -f 4)
sed "s|SUBNET|$SUBNET|g" \
configs/10-bridge.conf > 10-bridge.conf
sed "s|SUBNET|$SUBNET|g" \
configs/kubelet-config.yaml > kubelet-config.yaml
scp 10-bridge.conf kubelet-config.yaml \
root@${HOST}:~/
done
# 확인
ssh node-0 ls -l /root
ssh node-1 ls -l /root
# 파일 확인 및 node-0/1에 전달
cat configs/99-loopback.conf ; echo
cat configs/containerd-config.toml ; echo
cat configs/kube-proxy-config.yaml ; echo
kind: KubeProxyConfiguration
apiVersion: kubeproxy.config.k8s.io/v1alpha1
clientConnection:
kubeconfig: "/var/lib/kube-proxy/kubeconfig"
mode: "iptables"
clusterCIDR: "10.200.0.0/16"
cat units/containerd.service
cat units/kubelet.service
cat units/kube-proxy.service
for HOST in node-0 node-1; do
scp \
downloads/worker/* \
downloads/client/kubectl \
configs/99-loopback.conf \
configs/containerd-config.toml \
configs/kube-proxy-config.yaml \
units/containerd.service \
units/kubelet.service \
units/kube-proxy.service \
root@${HOST}:~/
done
for HOST in node-0 node-1; do
scp \
downloads/cni-plugins/* \
root@${HOST}:~/cni-plugins/
done
# 확인
ssh node-0 ls -l /root
ssh node-1 ls -l /root
ssh node-0 ls -l /root/cni-plugins
ssh node-1 ls -l /root/cni-plugins
- Provisioning a Kubernetes Worker Node : node-0, node-1 에 접속해서 실행
- node-0 접속 후 실행
#
ssh root@node-0
-----------------------------------------------------------
pwd
ls -l
# Install the OS dependencies : The socat binary enables support for the kubectl port-forward command.
apt-get -y install socat conntrack ipset kmod psmisc bridge-utils
# Disable Swap : Verify if swap is disabled:
swapon --show
# Create the installation directories
mkdir -p \
/etc/cni/net.d \
/opt/cni/bin \
/var/lib/kubelet \
/var/lib/kube-proxy \
/var/lib/kubernetes \
/var/run/kubernetes
# Install the worker binaries:
mv crictl kube-proxy kubelet runc /usr/local/bin/
mv containerd containerd-shim-runc-v2 containerd-stress /bin/
mv cni-plugins/* /opt/cni/bin/
# Configure CNI Networking
## Create the bridge network configuration file:
mv 10-bridge.conf 99-loopback.conf /etc/cni/net.d/
cat /etc/cni/net.d/10-bridge.conf
## To ensure network traffic crossing the CNI bridge network is processed by iptables, load and configure the br-netfilter kernel module:
lsmod | grep netfilter
modprobe br-netfilter
echo "br-netfilter" >> /etc/modules-load.d/modules.conf
lsmod | grep netfilter
echo "net.bridge.bridge-nf-call-iptables = 1" >> /etc/sysctl.d/kubernetes.conf
echo "net.bridge.bridge-nf-call-ip6tables = 1" >> /etc/sysctl.d/kubernetes.conf
sysctl -p /etc/sysctl.d/kubernetes.conf
# Configure containerd : Install the containerd configuration files:
mkdir -p /etc/containerd/
mv containerd-config.toml /etc/containerd/config.toml
mv containerd.service /etc/systemd/system/
cat /etc/containerd/config.toml ; echo
version = 2
[plugins."io.containerd.grpc.v1.cri"] # CRI 플러그인 활성화 : kubelet은 이 플러그인을 통해 containerd와 통신
[plugins."io.containerd.grpc.v1.cri".containerd] # containerd 기본 런타임 설정
snapshotter = "overlayfs" # 컨테이너 파일시스템 레이어 관리 방식 : Linux표준/성능최적
default_runtime_name = "runc" # 기본 OCI 런타임 : 파드가 별도 지정 없을 경우 runc 사용
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc] # runc 런타임 상세 설정
runtime_type = "io.containerd.runc.v2" # containerd 최신 runc shim
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options] # runc 옵션
SystemdCgroup = true # containerd가 cgroup을 systemd로 관리
[plugins."io.containerd.grpc.v1.cri".cni] # CNI 설정
bin_dir = "/opt/cni/bin" # CNI 플러그인 바이너리 위치
conf_dir = "/etc/cni/net.d" # CNI 네트워크 설정 파일 위치
# kubelet ↔ containerd 연결 Flow
kubelet
↓ CRI (gRPC)
unix:///var/run/containerd/containerd.sock
↓
containerd CRI plugin
↓
runc
↓
Linux namespaces / cgroups
# Configure the Kubelet : Create the kubelet-config.yaml configuration file:
mv kubelet-config.yaml /var/lib/kubelet/
mv kubelet.service /etc/systemd/system/
# Configure the Kubernetes Proxy
mv kube-proxy-config.yaml /var/lib/kube-proxy/
mv kube-proxy.service /etc/systemd/system/
# Start the Worker Services
systemctl daemon-reload
systemctl enable containerd kubelet kube-proxy
systemctl start containerd kubelet kube-proxy
# 확인
systemctl status kubelet --no-pager
systemctl status containerd --no-pager
systemctl status kube-proxy --no-pager
exit
-----------------------------------------------------------
# jumpbox 에서 server 접속하여 kubectl node 정보 확인
ssh server "kubectl get nodes node-0 -o yaml --kubeconfig admin.kubeconfig" | yq
ssh server "kubectl get nodes -owide --kubeconfig admin.kubeconfig"
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
node-0 Ready <none> 2m48s v1.32.3 192.168.10.101 <none> Debian GNU/Linux 12 (bookworm) 6.1.0-40-arm64 containerd://2.1.0-beta.0
ssh server "kubectl get pod -A --kubeconfig admin.kubeconfig"- node-1 접속 후 실행
#
ssh root@node-1
-----------------------------------------------------------
# Install the OS dependencies : The socat binary enables support for the kubectl port-forward command.
apt-get -y install socat conntrack ipset kmod psmisc bridge-utils
# Create the installation directories
mkdir -p \
/etc/cni/net.d \
/opt/cni/bin \
/var/lib/kubelet \
/var/lib/kube-proxy \
/var/lib/kubernetes \
/var/run/kubernetes
# Install the worker binaries:
mv crictl kube-proxy kubelet runc /usr/local/bin/
mv containerd containerd-shim-runc-v2 containerd-stress /bin/
mv cni-plugins/* /opt/cni/bin/
# Configure CNI Networking
## Create the bridge network configuration file:
mv 10-bridge.conf 99-loopback.conf /etc/cni/net.d/
cat /etc/cni/net.d/10-bridge.conf
## To ensure network traffic crossing the CNI bridge network is processed by iptables, load and configure the br-netfilter kernel module:
modprobe br-netfilter
echo "br-netfilter" >> /etc/modules-load.d/modules.conf
lsmod | grep netfilter
echo "net.bridge.bridge-nf-call-iptables = 1" >> /etc/sysctl.d/kubernetes.conf
echo "net.bridge.bridge-nf-call-ip6tables = 1" >> /etc/sysctl.d/kubernetes.conf
sysctl -p /etc/sysctl.d/kubernetes.conf
# Configure containerd : Install the containerd configuration files:
mkdir -p /etc/containerd/
mv containerd-config.toml /etc/containerd/config.toml
mv containerd.service /etc/systemd/system/
# Configure the Kubelet : Create the kubelet-config.yaml configuration file:
mv kubelet-config.yaml /var/lib/kubelet/
mv kubelet.service /etc/systemd/system/
# Configure the Kubernetes Proxy
mv kube-proxy-config.yaml /var/lib/kube-proxy/
mv kube-proxy.service /etc/systemd/system/
# Start the Worker Services
systemctl daemon-reload
systemctl enable containerd kubelet kube-proxy
systemctl start containerd kubelet kube-proxy
# 확인
systemctl status kubelet --no-pager
systemctl status containerd --no-pager
systemctl status kube-proxy --no-pager
exit
-----------------------------------------------------------
# jumpbox 에서 server 접속하여 kubectl node 정보 확인
ssh server "kubectl get nodes -owide --kubeconfig admin.kubeconfig"
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
node-0 Ready <none> 93s v1.32.3 192.168.10.101 <none> Debian GNU/Linux 12 (bookworm) 6.1.0-40-arm64 containerd://2.1.0-beta.0
node-1 Ready <none> 15s v1.32.3 192.168.10.102 <none> Debian GNU/Linux 12 (bookworm) 6.1.0-40-arm64 containerd://2.1.0-beta.0
ssh server "kubectl get pod -A --kubeconfig admin.kubeconfig"
10. Configuring kubectl for Remote Access
이 실습에서는 jumpbox 노드에서 kubectl 을 ‘admin 자격증명’으로 사용을 위한 설정을 합니다.
# The Admin Kubernetes Configuration File
# You should be able to ping server.kubernetes.local based on the /etc/hosts DNS entry from a previous lab.
curl -s --cacert ca.crt https://server.kubernetes.local:6443/version | jq
# Generate a kubeconfig file suitable for authenticating as the admin user:
kubectl config set-cluster kubernetes-the-hard-way \
--certificate-authority=ca.crt \
--embed-certs=true \
--server=https://server.kubernetes.local:6443
kubectl config set-credentials admin \
--client-certificate=admin.crt \
--client-key=admin.key
kubectl config set-context kubernetes-the-hard-way \
--cluster=kubernetes-the-hard-way \
--user=admin
kubectl config use-context kubernetes-the-hard-way
# 위 명령어를 실행한 결과 kubectl 명령줄 도구에서 사용하는 기본 위치 ~/.kube/config에 kubectl 파일이 생성됩니다.
# 이는 또한 구성을 지정하지 않고도 kubectl 명령어를 실행할 수 있음을 의미합니다.
# Check the version of the remote Kubernetes cluster:
kubectl version
# List the nodes in the remote Kubernetes cluster
kubectl get nodes -v=6
I0104 16:27:17.687800 2735 loader.go:402] Config loaded from file: /root/.kube/config
cat /root/.kube/config
kubectl get nodes -owide
kubectl get pod -A
11. Provisioning Pod Network Routes
https://github.com/kelseyhightower/kubernetes-the-hard-way/blob/master/docs/11-pod-network-routes.md
서로 다른 woker-node에 스케쥴링된 POD간의 네트워크 라우팅은 CNI 플러그인이 담당하지만 이 "손설치" 실습에서는 CNI 없이 OS 의 라우팅 설정을 수동으로 작업하여 해결합니다.
쿠버네티스 POD / Service 리소스의 네트워크 CIDR 정보는 아래와 같이 구성할 예정입니다.
| 항목 | 네트워크 대역 or IP |
| clusterCIDR | 10.200.0.0/16 |
| → node-0 PodCIDR | 10.200.0.0/24 |
| → node-1 PodCIDR | 10.200.1.0/24 |
| ServiceCIDR | 10.32.0.0/24 |
| → api clusterIP | 10.32.0.1 |
# The Routing Table
# In this section you will gather the information required to create routes in the kubernetes-the-hard-way VPC network.
# Print the internal IP address and Pod CIDR range for each worker instance:
SERVER_IP=$(grep server machines.txt | cut -d " " -f 1)
NODE_0_IP=$(grep node-0 machines.txt | cut -d " " -f 1)
NODE_0_SUBNET=$(grep node-0 machines.txt | cut -d " " -f 4)
NODE_1_IP=$(grep node-1 machines.txt | cut -d " " -f 1)
NODE_1_SUBNET=$(grep node-1 machines.txt | cut -d " " -f 4)
echo $SERVER_IP $NODE_0_IP $NODE_0_SUBNET $NODE_1_IP $NODE_1_SUBNET
192.168.10.100 192.168.10.101 10.200.0.0/24 192.168.10.102 10.200.1.0/24
ssh server ip -c route
ssh root@server <<EOF
ip route add ${NODE_0_SUBNET} via ${NODE_0_IP}
ip route add ${NODE_1_SUBNET} via ${NODE_1_IP}
EOF
ssh server ip -c route
ssh node-0 ip -c route
ssh root@node-0 <<EOF
ip route add ${NODE_1_SUBNET} via ${NODE_1_IP}
EOF
ssh node-0 ip -c route
ssh node-1 ip -c route
ssh root@node-1 <<EOF
ip route add ${NODE_0_SUBNET} via ${NODE_0_IP}
EOF
ssh node-1 ip -c route
12. Smoke Test
https://github.com/kelseyhightower/kubernetes-the-hard-way/blob/master/docs/12-smoke-test.md
이 실습에서는 Kubernetes 클러스터가 올바르게 작동하는지 확인하기 위해 일련의 작업을 완료하게 됩니다.
- Data Encryption
# Create a generic secret
kubectl create secret generic kubernetes-the-hard-way --from-literal="mykey=mydata"
# 확인
kubectl get secret kubernetes-the-hard-way
kubectl get secret kubernetes-the-hard-way -o yaml
kubectl get secret kubernetes-the-hard-way -o jsonpath='{.data.mykey}' ; echo
kubectl get secret kubernetes-the-hard-way -o jsonpath='{.data.mykey}' | base64 -d ; echo
# Print a hexdump of the kubernetes-the-hard-way secret stored in etcd
## etcdctl get … : etcd 내부 key 직접 조회, kubernetes API 우회(매우 강력한 접근)
## Secret 리소스의 etcd 실제 저장 경로: /registry/<resource>/<namespace>/<name> -> /registry/secrets/default/kubernetes-the-hard-way
ssh root@server \
'etcdctl get /registry/secrets/default/kubernetes-the-hard-way | hexdump -C'
00000000 2f 72 65 67 69 73 74 72 79 2f 73 65 63 72 65 74 |/registry/secret| # etcd key 이름은 항상 평문 : 어떤 리소스인지 식별 가능
00000010 73 2f 64 65 66 61 75 6c 74 2f 6b 75 62 65 72 6e |s/default/kubern|
00000020 65 74 65 73 2d 74 68 65 2d 68 61 72 64 2d 77 61 |etes-the-hard-wa|
00000030 79 0a 6b 38 73 3a 65 6e 63 3a 61 65 73 63 62 63 |y.k8s:enc:aescbc|
00000040 3a 76 31 3a 6b 65 79 31 3a 44 61 dc 08 37 97 eb |:v1:key1:Da..7..|
00000050 d4 d0 5b 14 39 23 a5 74 1b 3c a4 56 e4 a1 d1 17 |..[.9#.t.<.V....|
... # Kubernetes Secret이 etcd에 AES-CBC 방식으로 정상 암호화되어 저장되고 있음을 증명하는 출력
# k8s:enc : Kubernetes 암호화 포맷
# aescbc : 암호화 알고리즘 (AES-CBC)
# v1 : encryption provider 버전
# key1 : 사용된 encryption key 이름
# 이후 데이터는 암호화된 데이터
- Deployments , Port Forwarding , Log, Exec, Service(NodePort)
# Deployments
# Create a deployment for the nginx web server:
kubectl get pod
kubectl create deployment nginx --image=nginx:latest
kubectl scale deployment nginx --replicas=2
kubectl get pod -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-54c98b4f84-pxp6c 1/1 Running 0 108s 10.200.1.2 node-1 <none> <none>
nginx-54c98b4f84-qxpbn 1/1 Running 0 12s 10.200.0.2 node-0 <none> <none>
ssh node-0 crictl ps
ssh node-1 crictl ps
ssh node-0 pstree -ap
ssh node-1 pstree -ap
ssh node-0 brctl show
ssh node-1 brctl show
ssh node-0 ip addr # 파드 별 veth 인터페이스 생성 확인
ssh node-1 ip addr # 파드 별 veth 인터페이스 생성 확인
# server 노드에서 파드 IP로 호출 확인
ssh server curl -s 10.200.1.2 | grep title
ssh server curl -s 10.200.0.2 | grep title
# Port Forwarding
# Retrieve the full name of the nginx pod:
POD_NAME=$(kubectl get pods -l app=nginx -o jsonpath="{.items[0].metadata.name}")
echo $POD_NAME
# Forward port 8080 on your local machine to port 80 of the nginx pod:
kubectl port-forward $POD_NAME 8080:80 &
ps -ef | grep kubectl
# In a new terminal make an HTTP request using the forwarding address:
curl --head http://127.0.0.1:8080
# Log
# Print the nginx pod logs
kubectl logs $POD_NAME
curl --head http://127.0.0.1:8080
kubectl logs $POD_NAME
# 확인 후 port-forward Killed
kill -9 $(pgrep kubectl)
# Exec
# Print the nginx version by executing the nginx -v command in the nginx container:
kubectl exec -ti $POD_NAME -- nginx -v
# Service
# Expose the nginx deployment using a NodePort service:
kubectl expose deployment nginx \
--port 80 --type NodePort
# 확인
kubectl get service,ep nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/nginx NodePort 10.32.0.149 <none> 80:31410/TCP 10s
NAME ENDPOINTS AGE
endpoints/nginx 10.200.0.2:80,10.200.1.2:80 10s
# Retrieve the node port assigned to the nginx service:
NODE_PORT=$(kubectl get svc nginx --output=jsonpath='{range .spec.ports[0]}{.nodePort}')
echo $NODE_PORT
# Make an HTTP request using the IP address and the nginx node port:
curl -s -I http://node-0:${NODE_PORT}
curl -s -I http://node-1:${NODE_PORT}
(실습 정리) 실습 완료후 리소스 삭제
Vagrant 로 만든 VM 4대 삭제
## Windows
vagrant destroy -f
rmdir .vagrant'Kubernetes' 카테고리의 다른 글
| [K8S Deploy 3주차] kubeadm 을 이용한 K8S 클러스터 구성 (0) | 2026.01.22 |
|---|---|
| [K8S Deploy 2주차] Ansible 기초 (0) | 2026.01.12 |
| MinIO - DirectPV & Performance (1) | 2025.09.20 |
| MinIO 소개 (0) | 2025.09.13 |
| Cilium Study [1기] (8주차) - Cilium Security (0) | 2025.09.04 |
